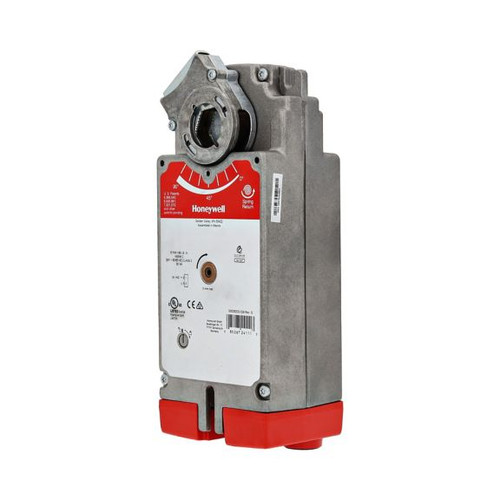

MS8120A1007/U - Direct Coupled Actuator: Spring Return: 175 lb-in: 20 Nm:24 Vac: 2-position (SPST)

Maximum Return Timing :

20second (time unit)

Feedback Included :

No

Overall Height :

9.75in

Minimum Storage Temperature :

-40°F

Supply Voltage :

24V AC/DC

Spring Return :

Yes

Minimum Operating Ambient Temperature :

-40degree Fahrenheit

Overall Depth :

75mm

Angle of Rotation :

95degree

Overall Width :

3.94in

Includes :

Mounting bracket

Brand :

Honeywell

Maximum Operating Ambient Temperature :

140degree Fahrenheit

Driving Power Consumption :

40VA

For Use With :

Two-Position (SPST) controller Valves and dampers (with suitable linkage)

Spring Return Orientation :

CW or CCW (based on actuator orientation)

Driving Noise Rating :

40weight decibel relative loudness measured at one meter

Operating Torque :

20Nm

Holding Power Consumption :

8VA

Maximum Shaft Diameter :

1in round

Feedback :

No Feedback Included

Control Signal :

Two-Position SPST

Maximum Storage Temperature :

70°C

Maximum Operating Humidity :

95percentage humidity non condensing

NEMA Rating :

NEMA 2

Minimum Shaft Diameter :

0.375inch

Runtime :

45 s

Actuator Type :

Electric

Minimum Operating Humidity :

5percentage humidity non condensing

Valve Compatibility :

With linkage

Supply Voltage Frequency :

50/60Hz

Application :

HVAC

Number of End Switches :

0

Power Loss Action :

Spring return

Maximum Angle Of Rotation :

95°

Enclosure Rating :

NEMA 2

Fail-Safe Action :

Spring Fail-safe

Maximum Shaft Size :

27 round 19 squaremm

Noise Rating :

40 (db(A) @ 1m)

Fail-Safe Timing :

20 sec

Manual Operation Type :

Hex Key

Drive Time :

45 sec

Certificates and Standards :

UL/cUL UL873 Plenum Rating File No. E4436 Guide No. XAPX CE C-Tick

Minimum Shaft Size :

10 round 13 squaremm

Number Of Auxiliary Switches :

0

Electrical Connection Type :

Screw terminals

Mounting Type :

Direct Coupled

PNC-Selector :

Valve+Actuator

PNC-Display SKU :

MS Series
