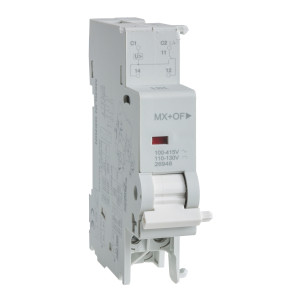

M9A26948

[Uc] control circuit voltage :

12...24 V AC 50/60 Hz~~

[Uc] control circuit voltage :

12...24 V DC

9 mm pitches :

2

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile :

No need of specific recycling operations

Connections - Terminals :

Clamp terminal bottom) - 1 0.004 in² (2.5 mm²) AWG 14) - rigid

Connections - Terminals :

Clamp terminal bottom) - 2 0.002 in² (1.5 mm²) AWG 16) - rigid

Depth :

2.7 in (68 mm)

Device Short Name :

MX + OF

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

IMN

Global Keywords :

Modular

Global Keywords :

Shunt trip release

Height :

3.2 in (82.5 mm)

Line Rated Current :

6 A at

Local Signalling :

Action indicator

Manufacturer :

Schneider Electric

Mounting Mode :

Fixed

Mounting Support :

DIN rail

Net Weight :

0.143 lb(US) (0.065 kg)

Number of Units in Package 2 :

8

Number of Units in Package 3 :

72

Package 2 GTIN :

13606480639095

Package 2 Height :

3.39 in (8.6 cm)

Package 2 Length :

10.43 in (26.5 cm)

Package 2 Weight :

23.3 oz (660 g)

Package 2 width :

3.94 in (10 cm)

Package 3 GTIN :

43606480639096

Package 3 Height :

11.81 in (30 cm)

Package 3 Length :

15.75 in (40 cm)

Package 3 Weight :

14.158 lb(US) (6.422 kg)

Package 3 width :

11.81 in (30 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

Yes

Pollution Degree :

3

Product Certifications :

CCC

Product Certifications :

PCT

Product Certifications :

UL

Product Certifications :

UR

Product Or Component Type :

Shunt trip release with OC contact

Range :

Multi9

Range Compatibility :

Multi9 C60BP

Range Compatibility :

Multi9 C60BPR

Range Compatibility :

Multi9 C60H-DC

Range Compatibility :

Multi9 C60SP

Range Compatibility :

Multi9 GFP

REACh free of SVHC :

Yes

signal contacts composition :

1 C/O

Standards :

EN/IEC 60947-1

Standards :

EN/IEC 60947-5-1

Take-back :

No

Temperature Ambient Operating Range :

-13…122 °F (-25…50 °C)

Temperature Shipping and Storage Range :

-40…185 °F (-40…85 °C)

Tightening Torque :

8.9 lbf.in (1 N.m) bottom

Toxic heavy metal free :

Yes

Unit Type of Package 2 :

BB1

Unit Type of Package 3 :

S03

UNSPSC Classification v19 :

39121603

UNSPSC Classification v23 :

39121603

Volume of Package 2 :

2279 cm3

Volume of Package 3 :

36000 cm3

Width :

0.7 in (18 mm)

Wire Stripping Length :

0.4 in (9 mm) for bottom connection
