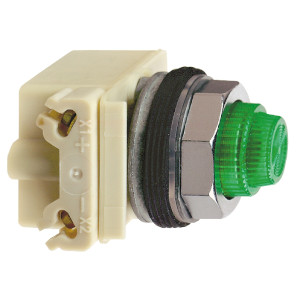

This product is part of the Harmony 9001K range, an offer of pilot lights. The pilot light is supplied with Fresnel lens with a round signalling unit head, diameter of 30mm. The supply voltage of this light block is 120V AC/DC. This pilot light has a BA9s base and green super bright light source for high visibility. It is furnished with screw clamp terminals for electrical connection. It can be operated by any position. It is light unit with a conventional free air thermal current of 10A and rated insulation voltage of 250V. It is heavy duty, oil-tight, waterproof and dust-tight without requiring boots thanks to its IP66 and NEMA 4 ratings. This pilot light bezel is made of chrome plated metal with plastic lens. Its dimensions are 54mm (width) x 70mm (depth) x 42mm (height) and weighs 0.134kg. It is suitable for use in automotive, machine tools, crane and hoist, food and beverage, material handling, petrochemical, wastewater treatment, metallurgy and industrial applications. This product is certified by UL, NEMA, CSA and CE. It complies with UL 508, JIS C8201-5-1, JIS C8201-1, JIS C 852, EN/IEC 60947-5-4, EN/IEC 60947-5-1, EN/IEC 60947-1 and CSA C22.2 No 14 standards. It is easily installed into 1/16inch to 1/4inch diameter panel cut outs. This robust range offers long-term reliability in heavy duty industrial applications and extreme environments.
- Range of Product : Harmony 9001K
- Product or Component Type : Pilot light
- Device short name : 9001K
- bezel material : Chromium plated metal
- Mounting diameter : 1.18 in (30 mm)
- Shape of signaling unit head : Round
- Lens type : Fresnel plastic
- Cap/operator or lens colour : Green
- Light source : Green LED
- Bulb base : BA 9s
- Light block supply : Direct 120 V AC/DC
- Connections - terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Tightening torque : 7.08 lbf.in (0.8 N.m) IEC 60947-1
- Shape of screw head : Cross slotted
- Operating position : Any position
- [Ui] rated insulation voltage : 250 V 2)IEC 60947-1
- [Uimp] rated impulse withstand voltage : 2.5 kV IEC 60947-1
- Short-circuit protection : 10 A cartridge fuse IEC 60947-5-1
- [Ith] conventional free air thermal current : 10 A
- CAD overall width : 2.13 in (54 mm)
- CAD overall height : 2.76 in (70 mm)
- CAD overall depth : 1.65 in (42 mm)
- Net Weight : 0.30 lb(US) (0.134 kg)
- Product Certifications : UL 508, NEMA
- Protective treatment : TC
- Ambient Air Temperature for Storage : -40…158 °F (-40…70 °C)
- Ambient Air Temperature for Operation : -13…158 °F (-25…70 °C)
- Vibration resistance : 7 gn 2…500 Hz)IEC 60068-2-6
- Shock resistance : 50 gn IEC 60068-2-27
- Overvoltage category : Class II IEC 61140
- IP degree of protection : IP66 IEC 60529
- NEMA degree of protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
- Category : US10CS121426
- Discount Schedule : 0CS1
- GTIN : 785901640028
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.20 in (5.588 cm)
- Package 1 Width : 3.60 in (9.144 cm)
- Package 1 Length : 1.80 in (4.572 cm)
- Package 1 Weight : 4.80 oz (136.000 g)
- Unit Type of Package 2 : P06
- Number of Units in Package 2 : 512
- Package 2 Height : 29.53 in (75.000 cm)
- Package 2 Width : 23.62 in (60.000 cm)
- Package 2 Length : 31.50 in (80.000 cm)
- Package 2 Weight : 185.37 lb(US) (84.083 kg)
- Warranty : 18 months
