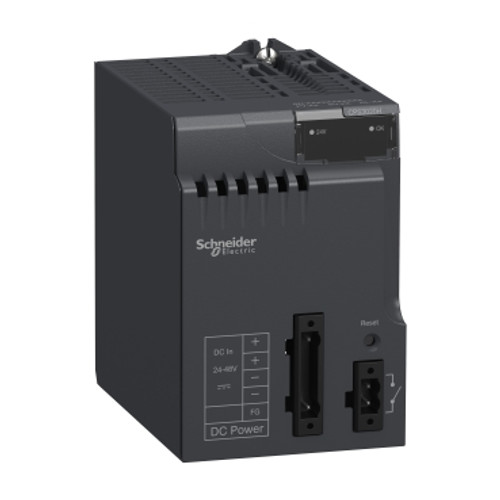

This power module is part of the Modicon X80 modules. This module provides the power supply for each Modicon X80 I/O rack and the modules installed. It is supplied with 24V to 48V DC isolated. It has a case which provides IP 20 protection of the electronics.
- Range of Product : Modicon X80
- Product or Component Type : Power supply module
- backplane compatibility : Not compatible with BMEXBP..02
- Primary Voltage : 24...48 V isolated
- Supply circuit type : DC
- Primary voltage limit : 18...62.4 V
- Input current : 0.83 A 48 V, 1.65 A 24 V
- Inrush current : 30 A 24 V, 60 A 48 V
- I²t on activation : 1 A².s 24 V, 3 A².s 48 V
- It on activation : 0.2 A.s 24 V, 0.3 A.s 48 V
- MTBF reliability : 4600000 H
- Current at secondary voltage : 1.3 A 24 V DC I/O module power supply and processor, 4.5 A 3.3 V DC I/O module logic power supply
- Maximum power dissipation in W : 8.5 W
- Status LED : 1 LED (Green) rack voltage OK
- control type : RESET push-button cold restart
- Electrical connection : 1 connector 2 alarm relay, 1 connector 5 line supply, protective earth
- Maximum cable distance between devices : 32.81 ft (10 m) power supply cable copper 0.00 in² (1.5 mm²), 49.21 ft (15 m) power supply cable copper 0.00 in² (2.5 mm²)
- Insulation resistance : >= 10 MOhm primary/ground, >= 10 MOhm primary/secondary
- Net Weight : 0.75 lb(US) (0.34 kg)
- Immunity to microbreaks : 1 ms
- Dielectric strength : 1500 V primary/ground, 1500 V primary/secondary
- Vibration resistance : 3 gn
- Shock resistance : 30 gn
- IP Degree of Protection : IP20
- Ambient Air Temperature for Storage : -40…185 °F (-40…85 °C)
- Ambient Air Temperature for Operation : 32…140 °F (0…60 °C)
- Relative humidity : 5…95 % 131 °F (55 °C) without condensation
- Protective treatment : TC
- Operating altitude : 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
- Category : US1PC3418160
- Discount Schedule : PC34
- GTIN : 3595863908985
- Returnability : Yes
- Country of origin : FR
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 5.19 in (13.183 cm)
- Package 1 Width : 6.08 in (15.437 cm)
- Package 1 Length : 6.16 in (15.654 cm)
- Package 1 Weight : 17.64 oz (500.0 g)
- Unit Type of Package 2 : S04
- Number of Units in Package 2 : 12
- Package 2 Height : 11.81 in (30 cm)
- Package 2 Width : 15.75 in (40 cm)
- Package 2 Length : 23.62 in (60 cm)
- Package 2 Weight : 15.92 lb(US) (7.22 kg)
- Unit Type of Package 3 : P06
- Number of Units in Package 3 : 48
- Package 3 Height : 29.53 in (75 cm)
- Package 3 Width : 23.62 in (60 cm)
- Package 3 Length : 31.50 in (80 cm)
- Package 3 Weight : 88.18 lb(US) (40 kg)
- Warranty : 18 months
