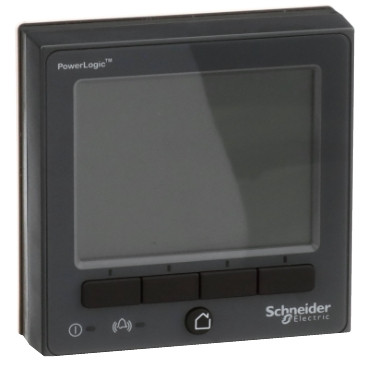

Display (RD96) compatible with PowerLogic PM8000, ION7400 and ION9000. 96mm by 96mm color graphical LCD with push-button interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage, current, alarms and input output status. Viewable area: color TFT LCD, 320 pixels by 240 pixels QVGA. Panel mounting using a 30 mm push-button hole or 1/4 DIN cutout. Ingress Protection IP54 (UL type 12) rating.
- Range : PowerLogic
- Product or Component Type : Remote display
- Device Application : Human-machine dialogue application
- Range compatibility : PowerLogic PowerLogic PM8000, PowerLogic PowerLogic ION7400
- Display Type : Colour TFT LCD
- Display Resolution : 320 x 240 pixels QVGA
- display size : 3.5 inch
- Messages display capacity : Graphic objects (bargraph, button, light...)
- Local signalling : Status LED Green), Alarm LED Red)
- Control type : 5 x push-button
- Connector Type : RJ45
- Provided equipment : Mounting Hardware, Cable 9.84 ft (3 m)
- Mounting Mode : Flush-mounted
- Mounting support : Framework remote display
- Width : 3.78 in (96 mm)
- Height : 3.78 in (96 mm)
- Projecting depth : 1.06 in (27 mm)
- Net Weight : 10.58 oz (300 g)
- IP degree of protection : IP54 IEC 60529
- Relative humidity : 5…95 %
- Operating altitude : 0...9842.52 ft (0...3000 m)
- Ambient Air Temperature for Operation : -13…140 °F (-25…60 °C)
- Ambient Air Temperature for Storage : -40…185 °F (-40…85 °C)
- Product Certifications : IEC
- Category : US10PL109782
- Discount Schedule : 0PL1
- GTIN : 3606480701986
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 5.50 in (13.97 cm)
- Package 1 Width : 5.50 in (13.97 cm)
- Package 1 Length : 7.50 in (19.05 cm)
- Package 1 Weight : 1.15 lb(US) (0.52 kg)
