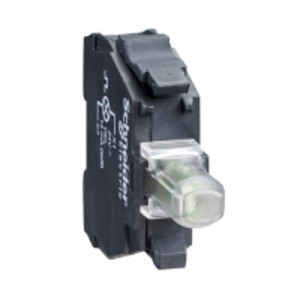

PUSH BUTTON LIGHT MODULE 22MM 110-120VAC XB5
- [Us] rated supply voltage : 110...120 V~~
- [Us] rated supply voltage : 110...120 V AC 50/60 Hz
- Brand : Schneider Electric
- bulb base : Integral LED
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 19
- Connections - Terminals : Screw clamp terminals
- Connections - Terminals : Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Current Consumption : 19 mA
- Device Presentation : Basic element
- Device Short Name : ZBV
- electrical composition code : M1
- electrical composition code : M10
- electrical composition code : M2
- electrical composition code : M3
- electrical composition code : M4
- electrical composition code : M5
- electrical composition code : M6
- electrical composition code : MF1
- electrical composition code : P1
- electrical composition code : P2
- electrical composition code : PF1
- electromagnetic emission : Class B IEC 55011
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : Clip-together component system
- Global Keywords : Dust resistant
- Global Keywords : Impact resistant
- Global Keywords : Light block
- Global Keywords : Modular
- Global Keywords : Schneider electric
- Global Keywords : Screw clamp terminal connection
- Global Keywords : Self-earthing
- Global Keywords : Universal LED
- Global Keywords : White
- Global Keywords : XB4
- Global Keywords : XB5
- Global warming ; Total life cycle? : 19 kg CO2 eq.
- IP Degree of Protection : IP20 IEC 60529
- light block supply : Direct
- light source : Universal LED
- light source colour : White
- Manufacturer : Schneider Electric
- mounting of block : Front mounting
- Net Weight : 0.037 lb(US) (0.017 kg)
- Number of Units in Package 2 : 5
- Number of Units in Package 3 : 800
- Package 2 GTIN : 13389110089667
- Package 2 Height : 2.20 in (5.6 cm)
- Package 2 Length : 2.13 in (5.4 cm)
- Package 2 Weight : 1.9 oz (53.0 g)
- Package 2 width : 1.73 in (4.4 cm)
- Package 3 GTIN : 43389110089668
- Package 3 Height : 11.81 in (30.0 cm)
- Package 3 Length : 15.75 in (40.0 cm)
- Package 3 Weight : 19.6 lb(US) (8.9 kg)
- Package 3 width : 11.81 in (30.0 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Product Certifications : CSA
- Product Certifications : UL Listed
- Product Or Component Type : Light block
- Protective Treatment : TH
- Resistance To Electromagnetic Fields : 9.1 V/m (10 V/m) IEC 61000-4-3
- Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2
- Resistance To Electrostatic Discharge : 8 kV in free air (in insulating parts) IEC 61000-4-2
- resistance to fast transients : 2 kV IEC 61000-4-4
- sale per indivisible quantity : 5
- SCIP Number : E148b25a-d37b-4237-bc1f-74823046728d
- Service Life : 100000 h at rated voltage and 25 °C
- shape of screw head : Cross Philips no 1
- shape of screw head : Cross pozidriv No 1
- shape of screw head : Slotted flat Ø 4 mm
- shape of screw head : Slotted flat Ø 5.5 mm
- signalling type : Steady
- Standards : CSA C22.2 No 14
- Standards : IEC 60947-1
- Standards : IEC 60947-5-1
- Standards : IEC 60947-5-4
- Standards : IEC 60947-5-5
- Standards : JIS C8201-1
- Standards : JIS C8201-5-1
- Standards : UL 508
- surge withstand : 1 kV IEC 61000-4-5
- Sustainable packaging : Yes
- Take-back : No
- Temperature Ambient Operating Range : -40…158 °F (-40…70 °C)
- Temperature Shipping and Storage Range : -40…158 °F (-40…70 °C)
- Tightening Torque : 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
- Unit Type of Package 2 : BB1
- Unit Type of Package 3 : S03
- UNSPSC Classification v19 : 39122216
- UNSPSC Classification v23 : 39122216
- Volume of Package 2 : 133.056 cm3
- Volume of Package 3 : 36000.0 cm3
- Warranty : 18 months
