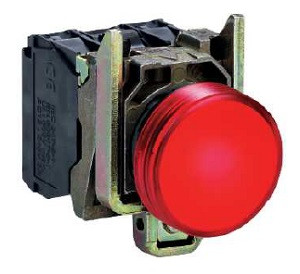

Red Complete Pilot Light, 22mm, plain lens with integral LED
- [Ui] rated insulation voltage : 250 V 3)IEC 60947-1~~
- [Uimp] rated impulse withstand voltage : 4 kV IEC 60947-1
- [Us] rated supply voltage : 24 V
- [Us] rated supply voltage : 24 V AC/DC 50/60 Hz
- bezel material : Chromium plated metal
- Brand : Schneider Electric
- bulb base : Integral LED
- By Schneider : Yes
- cap/operator or lens colour : Red
- Carbon footprint (kg CO2 eq, Total Life cycle) : 1
- Connections - Terminals : Screw clamp terminals
- Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Current Consumption : 18 mA
- customizable : 1
- customizable : No
- Depth : 2.1 in (54 mm)
- Device Presentation : Complete product
- Device Short Name : XB4
- electrical shock protection class : Class I conforming to IEC 60536
- electromagnetic emission : Class B IEC 55011
- Final Result for Connectable : Connectable with upgrade
- Final Result for Flywheel performance tracking : Connectable products
- fixing collar material : Zamak
- GCR BRIDGE : XB4BVCUST03
- Global Keywords : Chromium plated metal bezel
- Global Keywords : Circular
- Global Keywords : Complete unit
- Global Keywords : Dust resistant
- Global Keywords : Impact resistant
- Global Keywords : Modular
- Global Keywords : Pilot light
- Global Keywords : Plain lens
- Global Keywords : Red
- Global Keywords : Schneider electric
- Global Keywords : Screw clamp terminal connection
- Global Keywords : Self-earthing
- Global Keywords : Snap-fit assembly
- Global Keywords : Universal LED
- Global Keywords : Water Resistant
- Global warming ; Total life cycle? : 1 kg CO2 eq.
- head type : Standard
- Height : 1.9 in (47 mm)
- IK Degree of Protection : IK06 conforming to IEC 50102
- IP Degree of Protection : IP66 IEC 60529
- IP Degree of Protection : IP67
- IP Degree of Protection : IP69
- IP Degree of Protection : IP69K
- light source : Universal LED
- light source colour : Red
- Manufacturer : Schneider Electric
- mounting diameter : 0.9 in (22.5 mm)
- NEMA degree of protection : NEMA 13
- NEMA degree of protection : NEMA 4X
- Net Weight : 0.18 lb(US) (0.08 kg)
- Number of Units in Package 2 : 150
- Number of Units in Package 3 : 1200
- operator additional information : With plain lens
- Package 2 GTIN : 43389110891933
- Package 2 Height : 11.81 in (30 cm)
- Package 2 Length : 15.75 in (40 cm)
- Package 2 Weight : 26.821 lb(US) (12.166 kg)
- Package 2 width : 11.81 in (30 cm)
- Package 3 Height : 29.53 in (75 cm)
- Package 3 Length : 31.50 in (80 cm)
- Package 3 Weight : 237.420 lb(US) (107.692 kg)
- Package 3 width : 23.62 in (60 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Product Certifications : CSA
- Product Certifications : UL Listed
- Product Or Component Type : Pilot light
- Protective Treatment : TH
- Resistance To Electromagnetic Fields : 9.1 V/m (10 V/m) IEC 61000-4-3
- Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2
- Resistance To Electrostatic Discharge : 8 kV in free air (in insulating parts) IEC 61000-4-2
- resistance to fast transients : 2 kV IEC 61000-4-4
- resistance to high pressure washer : 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
- sale per indivisible quantity : 1
- SCIP Number : 3d14fd98-3859-4733-a5ee-a3016769973c
- Service Life : 100000 h at rated voltage and 25 °C
- shape of signaling unit head : Round
- shock resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- shock resistance : 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- signalling type : Steady
- Standards : CSA C22.2 No 14
- Standards : IEC 60947-1
- Standards : IEC 60947-5-1
- Standards : IEC 60947-5-4
- Standards : IEC 60947-5-5
- Standards : JIS C8201-1
- Standards : JIS C8201-5-1
- Standards : UL 508
- supply voltage limits : 19.2…30 V DC
- supply voltage limits : 21.6…26.4 V AC
- surge withstand : 1 kV IEC 61000-4-5
- Sustainable packaging : Yes
- Take-back : No
- Temperature Ambient Operating Range : -40…158 °F (-40…70 °C)
- Temperature Shipping and Storage Range : -40…158 °F (-40…70 °C)
- terminals description ISO n°1 : (X1-X2)PL
- Unit Type of Package 2 : S03
- Unit Type of Package 3 : P06
- UNSPSC Classification v19 : 39121534
- UNSPSC Classification v23 : 39121534
- vibration resistance : 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
- Volume of Package 2 : 36000 cm3
- Volume of Package 3 : 360000 cm3
- Warranty : 18 months
- Width : 1.2 in (30 mm)
