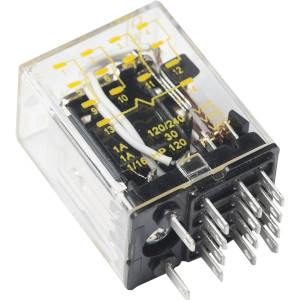

Relay, miniature plug in, 1 A, 4 poles, 120 VAC coil
- [Uc] control circuit voltage : 120 V AC~~
- Brand : Square D
- By Schneider : Yes
- Contacts Material : Gold plated bifurcated silver
- Depth : 1.6 in (41.5 mm)
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 0.167 HP
- Global Keywords : 120 VAC coil
- Global Keywords : 14 blades
- Global Keywords : 3A resistive
- Global Keywords : 4 normally open and 4 normally closed contacts
- Global Keywords : 4PDT
- Global Keywords : Control relay
- Global Keywords : Low voltage
- Global Keywords : Miniature plug in relay
- Height : 1.10 in (27.9 mm)
- Indivisible Sale Qty : 1
- Local Signalling : No indicator
- Manufacturer : Schneider Electric
- maximum switching voltage : 30 V DC
- maximum switching voltage : 300 V AC
- Mounting Support : Socket
- Number of Units in Package 2 : 25
- Operating Time : 20 ms - drop-out
- Operating Time : 20 ms - pick-up
- Override : Without test button
- Package 2 GTIN : 10785901031847
- Package 2 Height : 3.60 in (9.144 cm)
- Package 2 Length : 11.10 in (28.194 cm)
- Package 2 Weight : 2.599 lb(US) (1.179 kg)
- Package 2 width : 8.10 in (20.574 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Certifications : CE
- Product Certifications : CSA
- Product Certifications : UL Listed
- Product Certifications : UL Recognized
- Product Compatibility : 8501NR45
- Product Or Component Type : Miniature Relay
- rated breaking capacity : 0.5 A 120 V AC inductive control circuit UL 508
- rated breaking capacity : 3 A 120 V AC resistive control circuit UL 508
- rated breaking capacity : 3 A 277 V AC resistive control circuit UL 508
- rated breaking capacity : 3 A 30 V DC resistive control circuit UL 508
- Rated Power In Hp : 0.167 120 V AC
- REACh free of SVHC : Yes
- Relay Type : Low voltage
- shape of pin : Spade
- Switch Function : 4PDT
- Take-back : No
- Temperature Ambient Operating Range : -40…55 °C (-40…131 °F)
- Unit Type of Package 2 : CAR
- UNSPSC Classification v19 : 39122325
- UNSPSC Classification v23 : 39122325
- Volume of Package 2 : 5304.099327264 cm3
- Warranty : 18 months
- Width : 0.8 in (21 mm)
