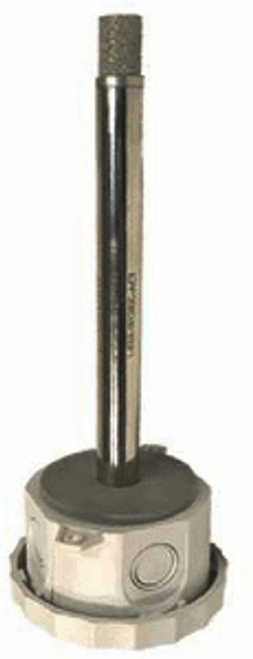

Relative Humidity and Temperature Combo Sensor| Duct|2% Accuracy|Field Selectable Outputs: |4-20mA|0-5 VDC|0-10 VDC |10K Ohm T3 Thermistor|Continuum|TAC Label
- [Us] rated supply voltage : 15...36 V DC~~
- [Us] rated supply voltage : 22...26 V AC
- Application : Duct
- Brand : Schneider Electric
- By Schneider : Yes
- Color : Cloud white
- Depth : 2.2 in (57 mm)
- Diameter : Probe 0.7 in (19 mm)
- Feature Level : Economy
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Global Keywords : Duct
- Global Keywords : Humidity
- Global Keywords : Sensor
- Global Keywords : Temperature
- Height : 3.6 in (91 mm)
- Humidity Measurement Resolution : 0.1 % RH
- Location : Plant Room
- Manufacturer : Automation Components, Inc.
- Material : ABS thermoplastic: enclosure
- Mounting Support : Duct
- Output Type : Analog
- Output Type : Resistive Output
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Probe Length : 7.8 in (199 mm)
- Product Or Component Type : Sensor
- Selection Tools : HVAC Sensors
- Sensor Type : 10 kOhm type 3 thermistor Temperature
- Setpoint : No
- Take-back : No
- Type Of Measurement : Humidity
- Type Of Measurement : Temperature
- Width : 3.6 in (91 mm)
- With Override : No
