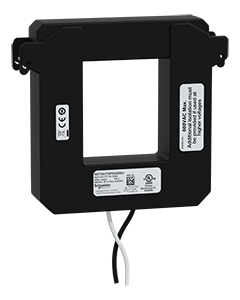

METSECTSP5A3080U

Accessory / Separate Part Category :

Measurement accessory~~

Ambient Air Temperature For Operation :

5…140 °F (-15…60 °C)

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

current transformer ratio :

800/5

current transformer type :

Split core

Depth :

1.12 in (28.45 mm)

Electrical Connection :

8 ft (2.4 m) AWG 16 flying lead

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

Current transformer

Global Keywords :

PowerLogic

Global Keywords :

SCCT

Global Keywords :

Split core

Global Keywords :

Split core current transformer

Global Keywords :

Split-core

Global Keywords :

UL2808

Height :

Internal: 2.9 in (73.7 mm)

Height :

Total: 5.36 in (136.14 mm)

Indivisible Sale Qty :

1

installation category :

III

insulation :

Basic insulation 600 V AC

insulation :

Reinforced insulation 300 V AC

Measurement Accuracy :

1 %

Mounting Location :

Indoor use only

Net Weight :

38.7 oz (1097 g)

Network Frequency :

50 Hz

Network Frequency :

60 Hz

Network Type :

AC

Number of Units in Package 2 :

6

Number of Units in Package 3 :

126

Package 2 GTIN :

13606489703582

Package 2 Height :

10.98 in (27.9 cm)

Package 2 Length :

18.46 in (46.9 cm)

Package 2 Weight :

21.023 lb(US) (9.536 kg)

Package 2 width :

12.95 in (32.9 cm)

Package 3 Height :

40.75 in (103.5 cm)

Package 3 Length :

47.24 in (120 cm)

Package 3 Weight :

474.338 lb(US) (215.156 kg)

Package 3 width :

39.37 in (100 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Pollution Degree :

2

primary operational current :

800 A

Product Certifications :

UL

Product Or Component Type :

Current transformer

Range :

PowerLogic

Range Compatibility :

Acti 9 Acti9 iEM3000 energy meter

Range Compatibility :

EasyLogic EasyLogic PM2100 power meter

Range Compatibility :

EasyLogic EasyLogic PM2200 power meter

Range Compatibility :

PowerLogic PowerLogic PM3000 power meter

Range Compatibility :

PowerLogic PowerLogic PM5000 power meter

REACh free of SVHC :

Yes

Relative Humidity :

0…95 % non condensing

secondary current :

5 A

Standards :

IEC 61869-2

Standards :

UL 2808

Take-back :

No

Temperature Shipping and Storage Range :

-40…158 °F (-40…70 °C)

Toxic heavy metal free :

Yes

Unit Type of Package 2 :

CAR

Unit Type of Package 3 :

PAL

UNSPSC Classification v19 :

39121032

UNSPSC Classification v23 :

39121032

Volume of Package 2 :

43049.979 cm3

Volume of Package 3 :

1242000 cm3

Width :

Internal: 2.46 in (62.48 mm)

Width :

Total: 5.83 in (148.08 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/UKDOC__METSECTXX_A2-V2.PDF
