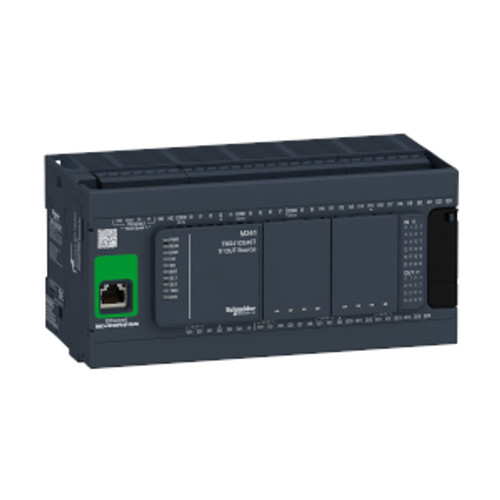

Schneider Electric TM241CE40T logic controller, Modicon M241, 40 IO, transistor, PNP, Ethernet

Manufacturer :

Schneider Electric

Marking :

CE

Maximum Cable Distance Between Devices :

Shielded cable

Maximum Cable Distance Between Devices :

Unshielded cable

Maximum Current Per Output Common :

2 A

Maximum Leakage Current :

5 µA output

maximum number of connections :

10 web server

maximum number of connections :

16 Ethernet/IP target

maximum number of connections :

4 FTP server

maximum number of connections :

8 Modbus client

maximum number of connections :

8 Modbus server

maximum number of connections :

8 SoMachine protocol

Maximum Number Of I/O Expansion Module :

14 (remote I/O-Architecture)

Maximum Number Of I/O Expansion Module :

7 (local I/O-Architecture)

maximum output frequency :

1 kHz output

maximum output frequency :

100 kHz fast output (PLS mode)

maximum output frequency :

20 kHz fast output (PWM mode)

Memory Capacity :

64 MB system memory RAM

Mounting Support :

plate or panel with fixing kit

Mounting Support :

Top hat type TH35-15 rail IEC 60715

Mounting Support :

Top hat type TH35-7.5 rail IEC 60715

Net Weight :

1.37 lb(US) (0.62 kg)

Number of server device(s) :

16 EtherNet/IP

Number of server device(s) :

64 Modbus TCP

Number of Units in Package 2 :

6

Number of Units in Package 3 :

48

Operating Altitude :

0...6561.68 ft (0...2000 m)

output voltage limits :

30 V DC

Package 2 GTIN :

43606480611207

Package 2 Height :

11.81 in (30.000 cm)

Package 2 Length :

15.75 in (40.000 cm)

Package 2 Weight :

11.852 lb(US) (5.376 kg)

Package 2 width :

11.81 in (30.000 cm)

Package 3 Height :

29.53 in (75.000 cm)

Package 3 Length :

31.50 in (80.000 cm)

Package 3 Weight :

119.050 lb(US) (54.000 kg)

Package 3 width :

23.62 in (60.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

Pollution Degree :

2

Port Ethernet :

10BASE-T/100BASE-TX - 1 copper cable

positioning functions :

PTO 4 100 kHz)

positioning functions :

PTO 4 transistor output 1 kHz)

Power Consumption in W :

32.6…40.4 W with max number of I/O expansion module)

Product Certifications :

ABS

Product Certifications :

CE

Product Certifications :

CULus

Product Certifications :

DNV-GL

Product Certifications :

LR

Product Certifications :

RCM

Product Certifications :

UKCA

Product Or Component Type :

Logic controller

Protection Type :

Reverse polarity protection fast output

Protection Type :

Short-circuit and overload protection with automatic reset

Protection Type :

Short-circuit protection

PVC free :

Yes

Realtime Clock :

With

Relative Humidity :

10…95 %, without condensation in operation)

Relative Humidity :

10…95 %, without condensation in storage)

reset time :

10 ms automatic reset output

reset time :

12 s automatic reset fast output

resistance to conducted disturbances :

10 V 0.15...80 MHz IEC 61000-4-6

resistance to conducted disturbances :

10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)

resistance to conducted disturbances :

3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL)

Resistance To Electromagnetic Fields :

0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3

Resistance To Electromagnetic Fields :

2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3

Resistance To Electromagnetic Fields :

9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3

Resistance To Electrostatic Discharge :

4 kV on contact IEC 61000-4-2

Resistance To Electrostatic Discharge :

8 kV in air IEC 61000-4-2

resistance to fast transients :

1 kV IEC 61000-4-4 Ethernet line)

resistance to fast transients :

1 kV IEC 61000-4-4 input)

resistance to fast transients :

1 kV IEC 61000-4-4 serial link)

resistance to fast transients :

1 kV IEC 61000-4-4 transistor output)

resistance to fast transients :

2 kV IEC 61000-4-4 power lines)

Response Time :

50 µs turn-off, I0...I15 input

Response Time :

50 µs turn-on, I0...I15 input

SCIP Number :

3d1fb974-648d-4978-8c59-b7dcc486f5a5

shock resistance :

15 gn 11 ms

Standards :

ANSI/ISA 12-12-01

Standards :

CSA C22.2 No 142

Standards :

CSA C22.2 No 213

Standards :

IEC 61131-2:2007

Standards :

Marine specification (LR, ABS, DNV, GL)

Standards :

UL 508

Storage Altitude :

0…9842.5 ft (0…3000 m)

Supply :

Serial 1)serial link supply 5 V

supply voltage limits :

20.4…28.8 V

surge withstand :

0.5 kV power lines (DC) differential mode IEC 61000-4-5

surge withstand :

1 kV input common mode IEC 61000-4-5

surge withstand :

1 kV power lines (DC) common mode IEC 61000-4-5

surge withstand :

1 kV relay output differential mode IEC 61000-4-5

surge withstand :

1 kV shielded cable common mode IEC 61000-4-5

surge withstand :

1 kV transistor output common mode IEC 61000-4-5

Take-back :

No

Temperature Shipping and Storage Range :

-13…158 °F (-25…70 °C)

Transmission Rate :

1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485

Transmission Rate :

1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232

Transmission Rate :

10/100 Mbit/s Ethernet

Transmission Rate :

480 Mbit/s 9.8 ft (3 m) USB

Unit Type of Package 2 :

S03

Unit Type of Package 3 :

P06

UNSPSC Classification v19 :

32151705

UNSPSC Classification v23 :

32151705

vibration resistance :

3 gn 8.4…150 Hz panel mounting

vibration resistance :

3 gn 8.4…150 Hz symmetrical rail

vibration resistance :

3.5 mm 5…8.4 Hz panel mounting

vibration resistance :

3.5 mm 5…8.4 Hz symmetrical rail

Voltage State 1 Guaranteed :

>= 15 V input

Volume of Package 2 :

36000.000 cm3

Volume of Package 3 :

360000.000 cm3

Web Services :

Web server

Width :

7.5 in (190 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/TM241CE40T_DATA%20SHEET.PDF||~~PDF
