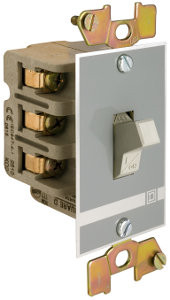

Square D 2510K motor starting switches provide compact manual On Off control of single or three phase motors or resistance heating loads up to 600 VAC, where overload protection is not required or provided separately. Open type fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Pilot light option is available. A variety of enclosures are available. Units are UL Recognized and CSA Certified for global applications. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This manual motor switch is not supplied with an enclosure. This switch is 4.13 inches tall, 1.69 inches wide and 2.34 inches deep. It weighs 0.35 lb. This device is UL Listed and CSA certified.
- Product : Single Unit Manual Switch
- Type : K
- Current Rating : 30 A
- Maximum Voltage Rating : 600 V AC, 230 V DC
- Number of Poles : 2P
- Control Unit Type : Toggle
- Number of Phases : 1 phase
- Pilot Light : No indicator
- Starter Type : Non reversing
- Electrical Connection : Screw clamp terminals
- Wire Gauge : AWG 14...AWG 10 copper
- Height : 4.13 in (104.90 mm)
- Width : 1.69 in (42.93 mm)
- Depth : 2.34 in (59.44 mm)
- Net Weight : 0.35 lb(US) (0.16 kg)
- Certifications : UL recognized E42243 CCN NLRV2, CSA LR25490 class 3211 05
- NEMA Enclosure Rating : Not rated (open device)
- Category : US10CP121102
- Discount Schedule : 0CP1
- GTIN : 785901554554
- Returnability : Yes
- Country of origin : MX
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 1.90 in (4.826 cm)
- Package 1 Width : 3.00 in (7.62 cm)
- Package 1 Length : 4.70 in (11.938 cm)
- Package 1 Weight : 5.60 oz (158.757 g)
- Unit Type of Package 2 : CAR
- Number of Units in Package 2 : 72
- Package 2 Height : 12.60 in (32.004 cm)
- Package 2 Width : 12.60 in (32.004 cm)
- Package 2 Length : 15.00 in (38.1 cm)
- Package 2 Weight : 31.68 lb(US) (14.37 kg)
- Unit Type of Package 3 : PAL
- Number of Units in Package 3 : 1152
- Package 3 Height : 40.00 in (101.6 cm)
- Package 3 Width : 40.00 in (101.6 cm)
- Package 3 Length : 48.00 in (121.92 cm)
- Package 3 Weight : 507.00 lb(US) (229.971 kg)
- Warranty : 18 months
