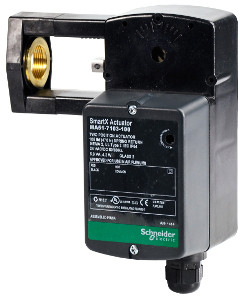

Actuator: (MF51-7103-100):|Actuator Type: Electric |Control Signal: Floating |Loss of Power Type: Spring Return |Power Input Voltage: 20 to 30 VDC, 24 VAC, 24 VDC |Leads and Connections: 3 ft Plenum |Force: 105 lbf |Mechanical Movement: Linear |Protection Rating: NEMA 2 |Product Line: Schneider Electric |Product Range: SmartX Actuator |Product Series: MF51-7103 |Actuator Use: Globe Valves
- [Us] rated supply voltage : 20...30 V DC~~
- [Us] rated supply voltage : 24 V AC/DC
- Actuator Product Range : SpaceLogic
- Actuator Product Series : MF51-7103
- Actuator Type : Electric
- Auxiliary Switch : No
- Brand : Schneider Electric
- By Schneider : Yes
- Circularity Profile : No need of specific recycling operations
- Conduit Connection : 1/2 in
- Control Signal : Floating
- Feedback Signal : 2 to 10 VDC
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Force lbf : 105 lbf
- Force N : 468 N
- Humidity : 5…95 % non-condensing
- Insulation Class : Class II
- IP Protection Rating : IP11
- Lead Length : 3 ft
- Leads and Connections : Plenum
- Loss of Power Type : Spring return
- Manufacturer : Schneider Electric
- Material : Polymer: housing
- Mechanical Movement : Linear
- Motor Type : Brushless DC motor
- NEMA Protection Rating : NEMA 2
- Override : Automatic reset
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Position Indicator : Housing Scale
- Power Consumption Running VA : 6.9 VA AC
- Product Destination : globe valve
- Product Or Component Type : Actuator
- Selection Tools : Valve Selection Tool
- Stroke Auto Calibration : Yes
- Take-back : No
- Temperature Ambient Operating Range : -22…140 °F (-30…60 °C)
- Temperature Shipping and Storage Range : -40…160 °F (-40…71 °C)
