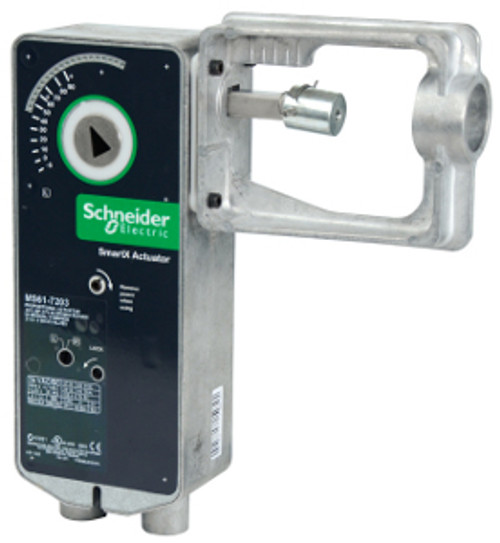

MS51-7203

[Us] rated supply voltage :

22...30 V DC~~

[Us] rated supply voltage :

24 V AC/DC

Actuator Product Range :

SpaceLogic

Actuator Product Series :

MFx1-7203

Actuator Type :

Electric

analogue input range :

2...10 V DC

analogue input range :

4...20 mA DC

Auxiliary Switch :

No

Brand :

Schneider Electric

By Schneider :

Yes

Circularity Profile :

No need of specific recycling operations

Conduit Connection :

1/2 in

Control Signal :

Proportional/Modulating

Current Consumption :

290 mA

Feedback Signal :

2 to 10 VDC

Final Result for Connectable :

Connectable ready

Final Result for Flywheel performance tracking :

Connectable products

Force lbf :

220 lbf

Force N :

979 N

Hold-In Power Consumption In W :

2.8 W

Humidity :

15…95 % non-condensing

Insulation Class :

Class II

IP Protection Rating :

IP11

Lead Length :

3 ft

Leads and Connections :

Appliance

Loss of Power Type :

Spring return

Manufacturer :

Schneider Electric

Material :

Die cast aluminium: housing

Mechanical Movement :

Linear

Motor Type :

Brushless DC motor

NEMA Protection Rating :

NEMA 2

Override :

Automatic reset

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

Position Indicator :

-5°: Normal Or Spring-Return Position

Position Indicator :

Pointer And Scale From -5...90°

Power Consumption Running VA :

9.8 VA AC

Power Consumption Running Watts :

7.4 W

Product Destination :

globe valve

Product Or Component Type :

Actuator

Selection Tools :

Valve Selection Tool

Stroke Auto Calibration :

No

Take-back :

No

Temperature Ambient Operating Range :

0…140 °F (-17.7…60 °C)

Temperature Shipping and Storage Range :

-40…160 °F (-40…71 °C)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/F-27252.PDF
