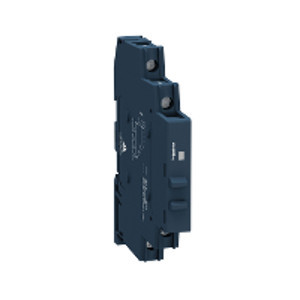

Solid State Relay|DIN Rail Mount|Rated Current: 6A|Number of Phases: 1-Phase|Control Circuit Voltage: 4-32 V DC|Output Voltage: 1-100 V DC|Contacts Type and Composition: 1 NO|Absolute Maximum Voltage: 100 V|Degree of Protection: IP20
- [Uc] control circuit voltage : 4...32 V~~
- [Uc] control circuit voltage : 4...32 V DC
- absolute maximum voltage : 100 V
- Brand : Schneider Electric
- By Schneider : Yes
- capacitance unbalance : 10 pF for input/output
- Connections - Terminals : Screw connectors
- Connections - Terminals : Screw terminals 1 x 0.3...1 x 1.5 mm², AWG 22...AWG 16) input
- Connections - Terminals : Screw terminals 1 x 0.3...1 x 2.5 mm², AWG 22...AWG 14) output
- Depth : 3.3 in (83.7 mm)
- Device Presentation : Complete product
- Device Short Name : SSM
- dielectric strength : 4 kV DC for input or output to case
- dielectric strength : 4 kV DC for input/output
- Final Result for Flywheel performance tracking : Non Flywheel
- Flame Retardance : V0 conforming to UL 94
- Global Keywords : 1 channel solid state relay
- Global Keywords : 1 phase solid state relay
- Global Keywords : 1vdc to 100vdc solid state relay
- Global Keywords : 4vdc to 32vdc control circuit solid state relay
- Global Keywords : 6a solid state relay
- Global Keywords : Dc switching solid state relay
- Global Keywords : Din rail mounting solid state relay
- Global Keywords : Green led solid state relay
- Global Keywords : Harmony solid state relay
- Global Keywords : Mosfet output/dc switching solid state relay
- Global Keywords : Schneider
- Global Keywords : Schneider electric
- Global Keywords : Screw terminals solid state relay
- Global Keywords : Se
- Global Keywords : Solid state relay
- Global Keywords : Ssm solid state relay
- Height : 3.6 in (90.3 mm)
- input current limits : 8…11 mA
- insulation resistance : 1000 MOhm at 500 V DC
- IP Degree of Protection : IP20
- Line Rated Current : 6 A
- load current : 0.0025…6 A
- Local Signalling : LED (green) for input status
- Manufacturer : Schneider Electric
- Marking : CE
- Maximum Leakage Current : 0.1 mA off-state
- maximum switching voltage : 1 V DC turn-off
- minimum switching voltage : 4 V DC turn-on
- Mounting Support : Symmetrical DIN rail
- Net Weight : 0.11 lb(US) (0.05 kg)
- Number Of Channels : 1
- Number of Units in Package 2 : 96
- output switching mode : DC switching
- Output Voltage : 1...100 V DC
- Override : Without test button
- Overvoltage Category : III
- Package 2 GTIN : 43606480579354
- Package 2 Height : 5.91 in (15.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 14.110 lb(US) (6.400 kg)
- Package 2 width : 11.81 in (30.000 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Phase : 1 phase
- Pollution Degree : 2
- Product Certifications : CSA
- Product Certifications : UL
- Product configuration type : Relay configuration
- Product Or Component Type : Modular DIN rail relay
- resistance : 0.1 Ohm on-state
- Response Time : 0.3 ms (turn-off)
- Response Time : 1.7 ms (turn-on)
- solid state output type : DC switching
- solid state output type : Mosfet output
- Standards : IEC 60950-1
- Standards : IEC 61000
- Standards : IEC 62314
- surge current : 60 A 10 ms
- Sustainable packaging : Yes
- Take-back : No
- Temperature Ambient Operating Range : -22…176 °F (-30…80 °C)
- Temperature Shipping and Storage Range : -22…212 °F (-30…100 °C)
- Tightening Torque : 0.5...0.8 N.m for input
- Tightening Torque : 0.5...0.8 N.m for output
- Unit Type of Package 2 : S02
- UNSPSC Classification v19 : 39122333
- UNSPSC Classification v23 : 39122333
- Volume of Package 2 : 18000.000 cm3
- Width : 0.4 in (11 mm)
