Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.

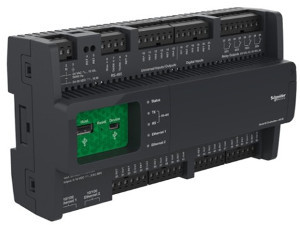

SpaceLogic automation server, AS-B-36, 36 I/O points, BACnet, MS/TP, modbus, scalable [TAA]

$0.00
(No reviews yet) Write a Review
SKU:
SXWASB36PX10001
SpaceLogic Controller: AS-B is a series of EcoStruxure Building Operation server devices and BACnet plantroom controllers. Total installed cost reduction driven by: |Built-in Power Supply, 24 AC/DC |28 of 36 onboard I/O points are multi universal |Analog input/output, Temperature, Digital input |Removable terminal blocks |Field markings Model with manual override display: SXWASB36HP10001 (AS-B-36H-P) Model with built-in software : SXWASB36X10001 (AS-B-36) All models in SpaceLogic Controller AS-B Series: Accessories: |AS-B connector kit, SXWASBCON10001 Screw terminal for all AS-B models |Installer kit AS-B, SXWASBINS10001 Mechanical unit for panel builders Product Alert: AS-B connector kit (SXWASBCON10001) ships with controller. Requires SBO version 1.8.1 or higher. AS-B models with “P” in the part number are hardware only. An AS-B software package needs to be purchased separately. Part Number Model I/O Points Manual Override Built-in Software Field Bus SXWASB24X10001 AS-B-24 24 Yes BACnet MS/TP, Modbus SXWASB24H10001 AS-B-24H 24 Yes Yes BACnet MS/TP, Modbus SXWASB24PX10001 AS-B-24-P 24 BACnet MS/TP, Modbus SXWASB24HP10001 AS-B-24H-P 24 Yes BACnet MS/TP, Modbus SXWASB36X10001 AS-B-36 36 Yes BACnet MS/TP, Modbus SXWASB36H10001 AS-B-36H 36 Yes Yes BACnet MS/TP, Modbus SXWASB36PX10001 AS-B-36-P 36 BACnet MS/TP, Modbus SXWASB36HP10001 AS-B-36H-P 36 Yes BACnet MS/TP, Modbus
[Us] rated supply voltage :
19...29 V AC
[Us] rated supply voltage :
21...33 V DC
Ambient Air Temperature For Operation :
32…122 °F (0…50 °C)
Analogue Input Type :
Configurable voltage, current or probe 0...10 V input voltage
Analogue Input Type :
Configurable voltage, current or probe 0...20 mA
Analogue Input Type :
Configurable voltage, current or probe 1 kOhm connection of probes
Analogue Input Type :
Configurable voltage, current or probe 1.8 kOhm connection of probes
Analogue Input Type :
Configurable voltage, current or probe 10 kOhm connection of probes
Analogue Input Type :
Configurable voltage, current or probe 10 kOhm with shunt
Analogue Input Type :
Configurable voltage, current or probe 2.2 kOhm connection of probes
Analogue Input Type :
Configurable voltage, current or probe 20 kOhm connection of probes
Brand :
Schneider Electric
By Schneider :
Yes
California proposition 65 :
WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon footprint (kg CO2 eq, Total Life cycle) :
187
Clock Drift :
+/- 52 s/month
Communication Port Protocol :
BACnet
Communication Port Protocol :
HTTP RJ45
Communication Port Protocol :
HTTPS RJ45
Communication Port Protocol :
Modbus TCP master RS485
Communication Port Protocol :
Modbus TCP slave RS485
Communication Service :
Modbus TCP client
Communication Service :
Modbus TCP server
Communication Service :
SMTP e-mail notification
Communication Service :
SMTPS e-mail notification
Communication Service :
SNMP network management
Depth :
2.5 in (64 mm)
Device Short Name :
AS-B-36-P
Display Colour :
Monochrome
Display Resolution :
128 x 64 pixels
Display Type :
FSTN transflective LCD
Display Type :
FSTN transflective LCD 1.4 x0.7" (36 x 17 mm)
Electrical Connection :
plug-in sub-base
Electrical Connection :
terminal with a manual overide switch
Final Result for Connectable :
Connectable ready
Final Result for Flywheel performance tracking :
Edge control
Flame Retardance :
UL94V0-5VB
Global Keywords :
Automation server
Global Keywords :
BACnet
Global Keywords :
BACnet Broadcast Management Device
Global Keywords :
BACnet Building Controllers
Global Keywords :
BACnet/SC
Global Keywords :
BBMD
Global Keywords :
BTL B-BC
Global Keywords :
I/O points
Global Keywords :
Modbus
Global Keywords :
MQTT
Global Keywords :
MS/TP
Global Keywords :
Plant room controller
Global Keywords :
Scalable pricing
Global Keywords :
Web Services
Global Keywords :
Zigbee wireless
Global warming ; Total life cycle? :
187 kg CO2 eq.
Halogen content performance :
Halogen free plastic parts and cables product
Height :
4.5 in (114 mm)
Indivisible Sale Qty :
1
Input/Output Type :
28 universal I/O
Integrated Connection Type :
Ethernet RJ45
Integrated Connection Type :
Serial link RS485
Integrated Connection Type :
USB 2.0 type A
Integrated Connection Type :
USB type mini B
IP Degree of Protection :
IP20
Material :
ABS/PC
Maximum Power Consumption In Va :
15 VA
Maximum Power Consumption In W :
10 W
Memory Type :
2 GB flash
Memory Type :
256 MB FRAM
Mounting Support :
DIN rail
Net Weight :
11.11 lb(US) (5.04 kg)
Network Frequency :
50 Hz
Network Frequency :
60 Hz
Number Of Outputs :
4 relay
Number Of Outputs :
4 triac
Number Of Port :
2 Ethernet
Packaging made with recycled cardboard :
Yes
Packaging without single use plastic :
Yes
Processor Name :
Spear 320s
Product Certifications :
BTL
Product Certifications :
CE
Product Certifications :
CULus
Product Certifications :
FCC part 15 class B
Product Certifications :
ICES-003
Product Certifications :
RCM
Product Compatibility :
Balco
Product Compatibility :
Continuum
Product Compatibility :
Honeywell
Product Compatibility :
I/NET
Product Compatibility :
Johnson Control
Product Compatibility :
Satchwell
Product Compatibility :
Xenta
Product Or Component Type :
Controller system
PVC free :
Yes
Range :
EcoStruxure Building Operation
Realtime Clock :
With
Relative Humidity :
0…95 % non-condensing
SCIP Number :
03661e90-9417-43f6-86cd-3316a623f51a
Standards :
FCC CFR 47 part 15
Standards :
UL 916
Supply :
Power supply 24 V
Sustainable packaging :
Yes
Switching Frequency :
25 Hz
Take-back :
No
Temperature Probe Type :
LG-Ni 1000 - 50...150 °C
Temperature Probe Type :
Ni 1000 - 50...150 °C
Temperature Probe Type :
Pt 1000 - 50...150 °C
Temperature Shipping and Storage Range :
-4…158 °F (-20…70 °C)
Web Services :
HTTP server
Web Services :
Programmable scripts : alarm summaries, report management
Web Services :
TLS 1.0
Width :
7.8 in (198 mm)
PDF :
https://iportal2.schneider-electric.com/Contents/docs/CERTIFICATE_CERT_6981_23_KZ.PDF
