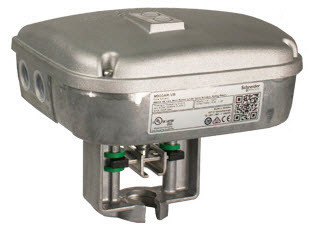

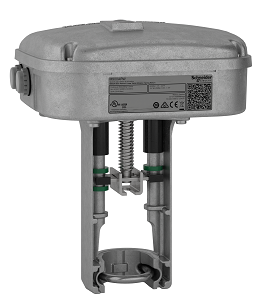

Actuator: (M900AR):|Actuator Type: Electric |Control Signal: Floating, Proportional |Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor |Loss of Power Type: Spring Return |Power Input Voltage: 20 to 29 VDC, 24 VAC, 24 VDC |Leads and Connections: Terminal Block |Force: 900 N |Mechanical Movement: Linear |Auxiliary Switch: Available as accessory |Protection Rating: IP40, IP54, NEMA 1, NEMA 2 |Product Line: Schneider Electric |Product Range: Spacelogic |Product Series: M900 |Actuator Use: Globe Valves Product Alert: NEMA 2 (IP 54, vertical mount only) with both conduit connectors used. NEMA 1 IP40 with one connector used. |
- [Us] rated supply voltage : 20...29 V DC~~
- [Us] rated supply voltage : 24 V AC/DC
- Actuator Product Range : SpaceLogic
- Actuator Product Series : M900
- Actuator Type : Electric
- analogue input range : 0...10 V DC
- analogue input range : 4...20 mA with 500 Ohm resistor
- Auxiliary Switch : 2 SPDT (optional)
- Brand : Schneider Electric
- By Schneider : Yes
- Control Signal : Floating
- Control Signal : Proportional/Modulating
- Feedback Signal : 2 to 10 VDC
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Force lbf : 202 lbf
- Force N : 900 N
- Global Keywords : Globe valve actuator
- Global Keywords : IP65 Electric Actuator
- Global Keywords : IP65 globe valve actuator
- Global Keywords : NEMA 4 Electric Actuator
- Global Keywords : NEMA 4 globe valve Actuator
- Global Keywords : Outdoor protected actuator
- Global Keywords : Spring Return outdoor actuator
- Global Keywords : Weather proog globe valve actuator
- Humidity : 15…95 % non-condensing
- Indivisible Sale Qty : 1
- IP Protection Rating : IP54
- Leads and Connections : Terminal Block
- Loss of Power Type : Spring return
- Mechanical Movement : Linear
- Motor Type : Brushless DC motor
- NEMA Protection Rating : NEMA 2
- Override : Automatic reset
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Product Destination : globe valve
- Product Or Component Type : Actuator
- REACh free of SVHC : Yes
- Selection Tools : Valve Selection Tool
- Take-back : No
- Temperature Ambient Operating Range : 14…122 °F (-10…50 °C)
- Temperature Shipping and Storage Range : -13…149 °F (-25…65 °C)
