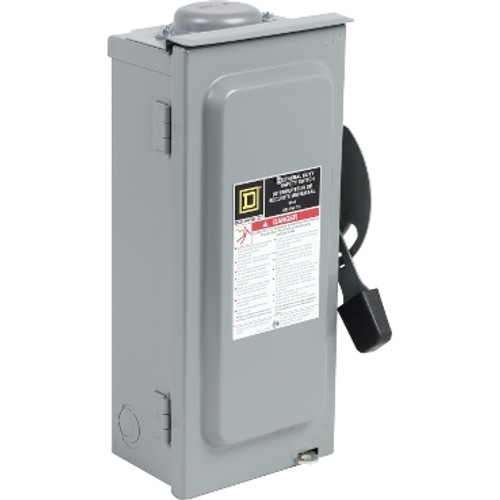

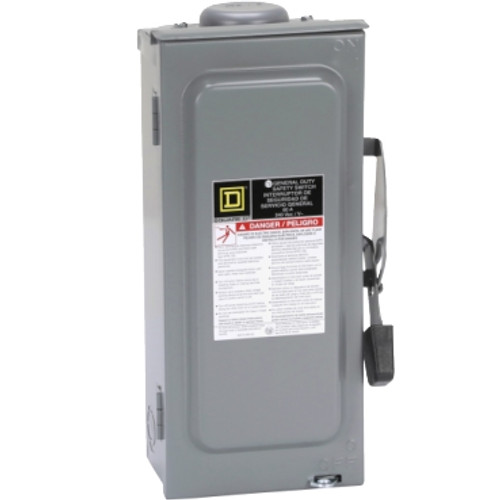

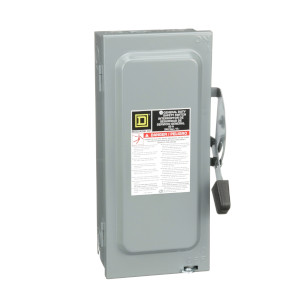

D322N

[Ue] rated operational voltage :

240 V AC~~

Application :

Residential

AWG Gauge :

AWG 12...AWG 3 aluminium

AWG Gauge :

AWG 14...AWG 3 copper

Brand :

Square D

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

42

Circularity Profile :

No need of specific recycling operations

Depth :

4.87 in (123.70 mm)

Device Composition :

Neutral (factory installed)

Device Mounting :

Surface

disconnector device type :

Fusible disconnect switch

Electrical Connection :

Lugs

Final Result for Flywheel performance tracking :

Non Flywheel

fuse type :

H, K or R

Global Keywords :

240 VAC

Global Keywords :

3 poles

Global Keywords :

3P

Global Keywords :

60 A

Global Keywords :

60 Amp

Global Keywords :

AC

Global Keywords :

Appliances

Global Keywords :

Commercial

Global Keywords :

Lighting

Global Keywords :

Residential

Global Keywords :

Safety switch gd

Global warming ; Total life cycle? :

42 kg CO2 eq.

Height :

14.88 in (377.95 mm)

Line Rated Current :

60 A

Manufacturer :

Schneider Electric

Motor power hp :

1.5 hp at 120 V AC 60 Hz for 1 phase motors

Motor power hp :

10 hp at 240 V AC 60 Hz for 1 phase motors

Motor power hp :

15 hp at 240 V AC 60 Hz for 3 phase motors

Motor power hp :

3 hp at 120 V AC 60 Hz for 3 phase motors

Motor power hp :

3 hp at 240 V AC 60 Hz for 1 phase motors

Motor power hp :

7.5 hp at 240 V AC 60 Hz for 3 phase motors

NEMA degree of protection :

NEMA 1

Net Weight :

8.8 lb(US) (4 kg)

number of poles :

3

Number of Units in Package 2 :

120

Package 2 Height :

45.50 in (115.570 cm)

Package 2 Length :

48.00 in (121.920 cm)

Package 2 Weight :

981.999 lb(US) (445.427 kg)

Package 2 width :

40.00 in (101.600 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

Product Certifications :

UL listed file E2875

Product Or Component Type :

Single Throw Safety Switch

PVC free :

Yes

series name :

General duty

short-circuit current :

100 kA maximum depending on fuse H, K or R

Sustainable packaging :

Yes

Take-back :

No

Tightening Torque :

35 lbf.in (4.0 N.m) 0.003…0.008 in² (2.08…5.26 mm²) (AWG 14...AWG 10)

Tightening Torque :

45 lbf.in (5.08 N.m) 0.01 in² (8.37 mm²) (AWG 8)

Tightening Torque :

45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4)

Tightening Torque :

50 lbf.in (5.6 N.m) 0.04 in² (26.67 mm²) (AWG 3)

Unit Type of Package 2 :

PAL

UNSPSC Classification v19 :

39122205

UNSPSC Classification v23 :

39122205

Volume of Package 2 :

1431573.911 cm3

Warranty :

18 months

Width :

7.45 in (189.23 mm)

wiring configuration :

4-wire (3PH + G)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/SQD-D322N_DATASHEET.PDF
