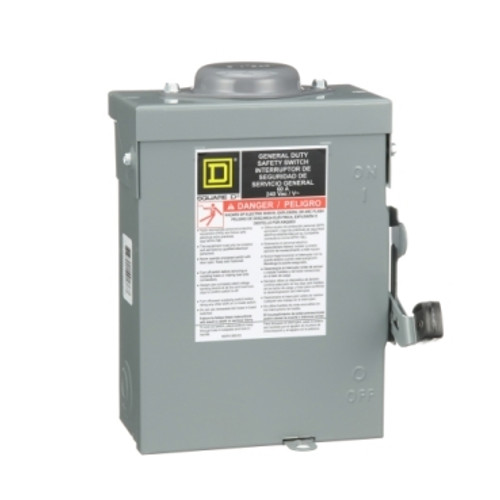

DU322

[Ue] rated operational voltage :

240 V AC~~

Application :

Residential

AWG Gauge :

AWG 12...AWG 3 aluminium

AWG Gauge :

AWG 14...AWG 3 copper

Brand :

Square D

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile :

No need of specific recycling operations

Depth :

3.63 in (92.20 mm)

Device Composition :

None

Device Mounting :

Surface

disconnector device type :

Non-fusible disconnect switch

Electrical Connection :

Lugs

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

240 VAC

Global Keywords :

3 poles

Global Keywords :

3P

Global Keywords :

60 A

Global Keywords :

60 Amp

Global Keywords :

AC

Global Keywords :

Appliances

Global Keywords :

Commercial

Global Keywords :

Lighting

Global Keywords :

Nonfusible

Global Keywords :

Non-fusible

Global Keywords :

Residential

Global Keywords :

Safety switch gd

Height :

9.25 in (234.95 mm)

Line Rated Current :

60 A

Manufacturer :

Schneider Electric

Motor power hp :

10 hp at 240 V AC 60 Hz for 1 phase motors

Motor power hp :

15 hp at 240 V AC 60 Hz for 3 phase motors

NEMA degree of protection :

NEMA 1

Net Weight :

19.8 lb(US) (9 kg)

number of poles :

3

Number of Units in Package 2 :

5

Number of Units in Package 3 :

150

Package 2 Height :

10.00 in (25.400 cm)

Package 2 Length :

19.00 in (48.260 cm)

Package 2 Weight :

23.0008 lb(US) (10.433 kg)

Package 2 width :

8.10 in (20.574 cm)

Package 3 Height :

40.00 in (101.600 cm)

Package 3 Length :

48.00 in (121.920 cm)

Package 3 Weight :

689.999 lb(US) (312.978 kg)

Package 3 width :

40.00 in (101.600 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

Product Certifications :

UL listed file E2875

Product Or Component Type :

Single Throw Safety Switch

PVC free :

Yes

REACh free of SVHC :

Yes

series name :

General duty

Sustainable packaging :

Yes

Take-back :

No

Tightening Torque :

35 lbf.in (4.0 N.m) (AWG 14...AWG 10)

Tightening Torque :

35 lbf.in (4.0 N.m) 0.003…0.008 in² (2.08…5.26 mm²) (AWG 14...AWG 10)

Tightening Torque :

45 lbf.in (5.08 N.m) 0.01 in² (8.37 mm²) (AWG 8)

Tightening Torque :

45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4)

Tightening Torque :

50 lbf.in (5.6 N.m) 0.04 in² (26.67 mm²) (AWG 3)

Toxic heavy metal free :

Yes

Unit Type of Package 2 :

CAR

Unit Type of Package 3 :

PAL

UNSPSC Classification v19 :

39122218

UNSPSC Classification v23 :

39122218

Volume of Package 2 :

25219.691 cm3

Volume of Package 3 :

1258526.515 cm3

Warranty :

18 months

Width :

7.25 in (184.15 mm)

wiring configuration :

3-wire

PDF :

https://iportal2.schneider-electric.com/Contents/docs/SQD-DU322_DATA%20SHEET.PDF
