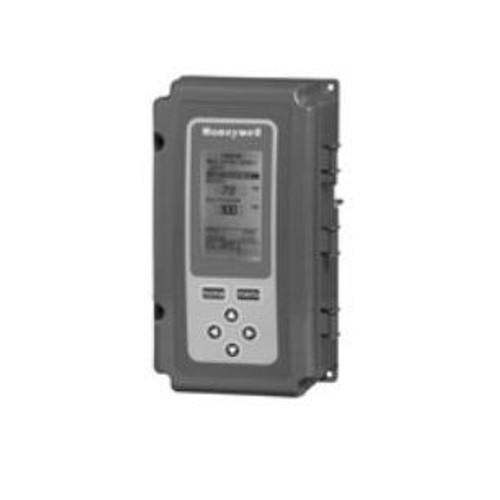

T775 Series 2000 electronic standalone controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.Features & B"|Electronic Temperature Controller: Modulating: 2 SPDT: 1 Sensor Included: 2 Sensor Inputs
- Dimensions (in.) : 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
- Dimensions (mm) : 207.1 mm high x 112.1 mm wide x 74 mm deep
- Item Type : Product
- Frequency : 50 Hz, 60 Hz
- Approvals, Underwriters Laboratories Inc. : Approved
- Voltage : 24 Vac or 120/240 Vac
- Setpoint Temperature Range (C) : -40 C to 120 C
- Setpoint Temperature Range (F) : -40 F to 248 F
- Operating Temperature Range (F) : Ambient-- -40 F to 140 F @ 60 Hz, -40 F to 125 F @ 50 Hz
- Operating Temperature Range (C) : Ambient-- -40 C to 52 C @ 50 Hz, -40 C to 60 C @ 60 Hz
- Approvals, CE : Approved
- Approvals, Canadian Underwriters Laboratories Inc. : Approved
- Analog Output : 2,Electronic Series 90, 4-20 mA, 0-10 Vdc, 2-10 Vdc
- Relay Outputs : 2 SPDT
- Sensor Inputs : 2
- Sensor Element : 1097 ohms PTC at 77 F (25 C)
- Sensors Included : 50021579-001 (1)
- Maximum distance to sensor (ft) : Up to 1,000 ft
- Maximum distance to sensor (m) : up to 304 m
- Bulb Size (in.) : 1/4 in. diameter x 2 in. long
- Bulb Size (mm) : 6.35 mm diameter x 50.8 mm
- Accuracy (F) : ±1 F at 77 F
- Accuracy (C) : ±1 C at 25 C
- Throttling Range (F) : 1 F to 150 F
- Throttling Range (C) : 0.5 C to 66 C
- Differential Temperature (F) : 1 F to 150 F
- Differential Temperature (C) : 0.5 C to 66 C
- High/Low Mod Limit : Yes
- Approvals, C-Tick : Approved
- Enclosure Rating : NEMA 1; NEMA 1
- Controller Type : Modulating Control; Modulating Control
- Number of Sensor Inputs : 2
- Relay Output Configuration : 2 SPDT; 2 SPDT
- Number of Analog Outputs : 2milliampere
- Analog Outputs : 2 Configurable (4-20 mA 0(2)-10 Vdc Electronic Series 90)
