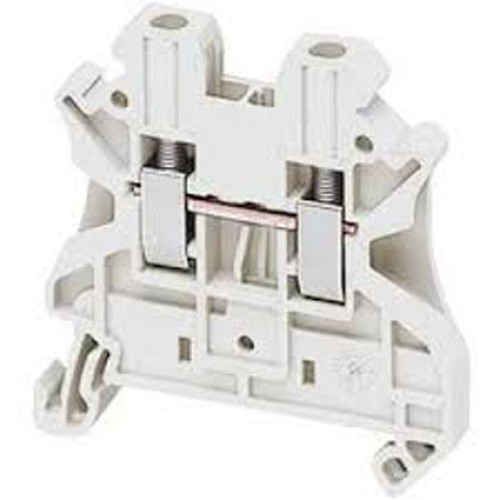

Terminal block, Linergy TR, grey, 2.5mm², passthrough, 2 points, set of 10

[Ue] rated operational voltage :

1000 V EN/IEC 60947-7-1

[Ue] rated operational voltage :

600 V CSA

[Ue] rated operational voltage :

600 V UL

Accessory / Separate Part Category :

Connection accessory

Ambient Air Temperature For Operation :

-40…266 °F (-40…130 °C) IEC 60216-1

Ambient Air Temperature For Operation :

-40…266 °F (-40…130 °C) VDE 0304-T21

Brand :

Schneider Electric

By Schneider :

Yes

Cable Cross Section :

0.0002…0.006 in² (0.14…4 mm²), flexible without cable end

Cable Cross Section :

0.0002…0.006 in² (0.14…4 mm²), solid with cable end

Cable Cross Section :

0.0002…0.006 in² (0.14…4 mm²), solid without cable end

Cable Cross Section :

0.0003…0.004 in² (0.2…2.5 mm²), flexible with cable end

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

5

Circularity Profile :

No need of specific recycling operations

Color :

Gray

connection position :

Sideways

Connections - Terminals :

1 x screw terminal downstream M3)

Connections - Terminals :

1 x screw terminal upstream M3)

creep resistance :

500 CTI (> 400 kB) IEC 60093

creep resistance :

500 CTI (> 400 kB) VDE 0303-T30

Device Short Name :

TRV

dielectric constant :

3.7 at 1 MHz

dielectric loss :

0.01 at 1 MHz IEC 60250

dielectric loss :

0.01 at 1 MHz VDE 0303-T4

dielectric strength :

1000 V IEC 60243-1

Final Result for Flywheel performance tracking :

Non Flywheel

Flame Retardance :

V0 0.03 in (0.8 mm) UL 94

Global Keywords :

2.5mm² cross section

Global Keywords :

Clip on mounting

Global Keywords :

Colour grey

Global Keywords :

Linergy NYSTR

Global Keywords :

Linergy TR

Global Keywords :

Linergy TR terminal block

Global Keywords :

Pass through type

Global Keywords :

Screw terminal

Global warming ; Total life cycle? :

5 kg CO2 eq.

Halogen content performance :

Halogen free plastic parts product

Height :

1.9 in (47.5 mm)

Length :

1.9 in (47.7 mm)

Line Rated Current :

20 A CSA

Line Rated Current :

20 A UL

Line Rated Current :

24 A EN/IEC 60947-7-1

Material :

Chromium-nickel steel: spring

Material :

Copper alloy: commoning link

Material :

Copper alloy: connector and screw

Material :

Polyamide 6/6: insulating case

Mounting Mode :

Clip-on

Net Weight :

0.3 oz (8.2 g)

nominal cross section :

0.004 in² (2.5 mm²)

number of measurement input :

2

number of terminals :

2

Number of Units in Package 2 :

50

Number of Units in Package 3 :

12100

Package 2 GTIN :

13606480531795

Package 2 Height :

2.17 in (5.500 cm)

Package 2 Length :

10.63 in (27.000 cm)

Package 2 Weight :

13.827 oz (392.000 g)

Package 2 width :

2.36 in (6.000 cm)

Package 3 GTIN :

73606480531797

Package 3 Height :

29.53 in (75.000 cm)

Package 3 Length :

31.50 in (80.000 cm)

Package 3 Weight :

239.934 lb(US) (108.832 kg)

Package 3 width :

23.62 in (60.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

Product Certifications :

CSA

Product Certifications :

DNV

Product Certifications :

GL

Product Certifications :

UL

Product Certifications :

VDE

Product Compatibility :

Spacial enclosures

Product Name :

Linergy TR

Product Or Component Type :

Terminal block

Quantity Per Set :

Set of 50

Range :

Linergy

Range Compatibility :

Mureva

Range Compatibility :

PanelSeT

Range Compatibility :

PrismaSeT G

Range Compatibility :

PrismaSet HD

Range Compatibility :

PrismaSeT P

Range Compatibility :

PrismaSeT Pack 250

Range Compatibility :

PrismaSeT XS

Range Compatibility :

TeSys

Range Compatibility :

Thalassa

Range Compatibility :

Thalassa Thalassa TBP

resistivity :

10000 M?.m IEC 60093

resistivity :

10000 M?.m VDE 0303-T30

SCIP Number :

8e5413ff-f1a1-4909-ad03-977097e33bd2

surface resistance :

1000 G? IEC 60093

surface resistance :

1000 G? VDE 0303-T30

Sustainable packaging :

Yes

Take-back :

No

terminal block level :

1

terminal block type :

Passthrough

Tightening Torque :

4.4…5.3 lbf.in (0.5…0.6 N.m)

tool type :

Connection screwdriver

tool type :

Disconnection screwdriver

Unit Type of Package 2 :

BB1

Unit Type of Package 3 :

S06

UNSPSC Classification v19 :

39121410

UNSPSC Classification v23 :

39121410

Volume of Package 2 :

891.000 cm3

Volume of Package 3 :

360000.000 cm3

Warranty :

18 months

Width :

0.2 in (5.2 mm)

Wire Stripping Length :

0.4 in (9 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/NSYTRV22_DATA%20SHEET.PDF
