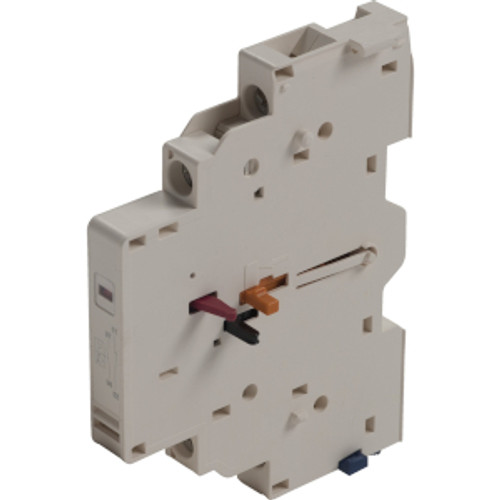

TeSys GV2 & GV3 - auxiliary contact - 1 NC + 1 NO (fault)
- [Ith] conventional free air thermal current : 2.5 A for fault signalling
- [Ith] conventional free air thermal current : 6 A
- [Ue] rated operational voltage : 24...240 V DC
- [Ue] rated operational voltage : 48...690 V AC
- [Ui] rated insulation voltage : 300 V CSA C22.2 No 14
- [Ui] rated insulation voltage : 300 V UL 508
- [Ui] rated insulation voltage : 690 V IEC 60947-1
- auxiliary contacts operation : Fault signal 1 NO
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 1
- Color : Dark grey
- Depth : 2.6 in (66 mm)
- Device Short Name : GVAD
- Environmental Characteristic : Normal environment
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : Auxiliary contact block
- Global Keywords : Fault signalling
- Global Keywords : GV2
- Global Keywords : GV3
- Global Keywords : GVAD
- Global Keywords : Instantaneous auxiliary contact
- Global Keywords : Side mounting
- Global Keywords : Tesys GV
- Global warming ; Total life cycle? : 1 kg CO2 eq.
- Height : 3.5 in (89 mm)
- Manufacturer : Square D
- Mechanical Durability : 100000 cycles
- minimum switching current : 5 mA
- minimum switching voltage : 17 V
- Mounting Location : Left side
- Net Weight : 0.121 lb(US) (0.055 kg)
- Number of Units in Package 2 : 10
- Number of Units in Package 3 : 60
- Number of Units in Package 4 : 960
- Package 2 GTIN : 23389110343544
- Package 2 Height : 3.74 in (9.500 cm)
- Package 2 Length : 5.91 in (15.000 cm)
- Package 2 Weight : 18.201 oz (516.000 g)
- Package 2 width : 3.74 in (9.500 cm)
- Package 3 GTIN : 33389110343541
- Package 3 Height : 5.91 in (15.000 cm)
- Package 3 Length : 15.75 in (40.000 cm)
- Package 3 Weight : 7.379 lb(US) (3.347 kg)
- Package 3 width : 11.81 in (30.000 cm)
- Package 4 Height : 29.53 in (75.000 cm)
- Package 4 Length : 31.50 in (80.000 cm)
- Package 4 Weight : 135.699 lb(US) (61.552 kg)
- Package 4 Width : 23.62 in (60.000 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- pole contact composition : 1 NO + 1 NC
- Product Certifications : UKCA
- Product Compatibility : GV2L
- Product Compatibility : GV2LE
- Product Compatibility : GV2ME
- Product Compatibility : GV2P
- Product Compatibility : GV2RT
- Product Compatibility : GV3L
- Product Compatibility : GV3P
- Product Or Component Type : Auxiliary contact block
- Protection Type : GB2CB... circuit breaker
- Protection Type : GG fuse 10 A
- Range : TeSys
- Range : TeSys Deca
- Rated Operational Power In Va : 300 VA 48 V AC-15 100000 cycles
- Rated Operational Power In Va : 36 VA 24 V AC-14 1000 cycles
- Rated Operational Power In Va : 414 VA 690 V AC-15 100000 cycles
- Rated Operational Power In Va : 48 VA 48 V AC-14 1000 cycles
- Rated Operational Power In Va : 500 VA 110…127 V AC-15 100000 cycles
- Rated Operational Power In Va : 500 VA 500 V AC-15 100000 cycles
- Rated Operational Power In Va : 650 VA 440 V AC-15 100000 cycles
- Rated Operational Power In Va : 72 VA 110…127 V AC-14 1000 cycles
- Rated Operational Power In Va : 720 VA 230…240 V AC-15 100000 cycles
- Rated Operational Power In Va : 850 VA 380…415 V AC-15 100000 cycles
- rated operational power in W : 120 W 240 V DC-13 100000 cycles
- rated operational power in W : 140 W 110 V DC-13 100000 cycles
- rated operational power in W : 140 W 24 V DC-13 100000 cycles
- rated operational power in W : 15 W 48 V DC-13 1000 cycles
- rated operational power in W : 180 W 60 V DC-13 100000 cycles
- rated operational power in W : 24 W 24 V DC-13 1000 cycles
- rated operational power in W : 240 W 48 V DC-13 100000 cycles
- rated operational power in W : 9 W 60 V DC-13 1000 cycles
- REACh free of SVHC : Yes
- Take-back : No
- Tightening Torque : 12.4 lbf.in (1.4 N.m) screw clamp terminals
- Toxic heavy metal free : Yes
- Unit Type of Package 2 : BB1
- Unit Type of Package 3 : S02
- Unit Type of Package 4 : P06
- UNSPSC Classification v19 : 39121522
- UNSPSC Classification v23 : 39121522
- Volume of Package 2 : 1353.750 cm3
- Volume of Package 3 : 18000.000 cm3
- Warranty : 18 months
- Width : 0.4 in (9.3 mm)
