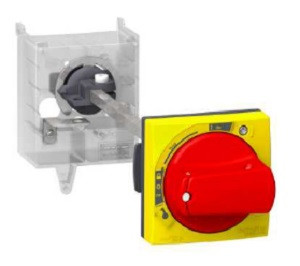

TeSys GV extended rotary handle, for motor circuit breakers GV3L, GV3P mounted inside an enclosure and to be operated externally. For emergency switch usage, it provides a red handle on yellow front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 189-300mm). Padlockable in OFF position with up to 3 padlocks (to be ordered separately). Green Premium compliant (RoHS/REACh).
- Range : TeSys, TeSys Deca
- Device short name : GV3AP
- Product or Component Type : Rotary handle kit
- Accessory / separate part category : Control accessory
- handle colour : Red
- Handle front plate colour : Yellow
- Product Compatibility : GV3L, GV3P
- Rotary handle padlocking : Padlock in OFF position
- Rotary handle mounting style : Extended
- Locking options description : 1 to 3 padlocks
- Back/door distance : 7.44…11.81 in (189…300 mm)
- Net Weight : 0.66 lb(US) (0.3 kg)
- IP degree of protection : IP54
- Category : US10I1122367
- Discount Schedule : 0I11
- GTIN : 3606480160967
- Returnability : Yes
- Country of origin : CZ
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.64 in (6.700 cm)
- Package 1 Width : 3.54 in (9.000 cm)
- Package 1 Length : 14.65 in (37.200 cm)
- Package 1 Weight : 12.45 oz (353.000 g)
- Unit Type of Package 2 : S03
- Number of Units in Package 2 : 12
- Package 2 Height : 11.81 in (30.000 cm)
- Package 2 Width : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 10.49 lb(US) (4.756 kg)
- Warranty : 18 months
