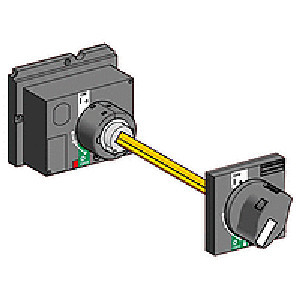

GV7AP01 is an extended rotary handle for TeSys GV7 motor circuit breakers from Schneider Electric. Compatible with all GV7 models, it operates externally front face a circuit breaker installed inside a cabinet. Black handle, for main switch usage. GV7AP01 is an extended rotary handle for TeSys GV7 motor circuit breakers from Schneider Electric. Compatible with all GV7 models, it allows a circuit breaker installed inside a cabinet to be operated externally front face. It includes an adaptor for the face of the circuit breaker, a black handle with grey front plate to be door mounted and an extension shaft adjustable in length. It is intended for main switch usage, ensures IP55 protection and is padlockable. Extended rotary handle for the external operation of a circuit breaker installed inside a cabinet. The extension shaft can be adjusted for a distance of 185mm to 600mm between the mounting surface of the circuit breaker and the external door surface. Black handle with grey front plate for main switch applications. Ensure IP55 protection. Padlockable with 3 padlocks in the Off position, prevents the door to be opened.
- Range : TeSys
- Product or Component Type : Extended rotary handle
- Device short name : GV7AP
- Range compatibility : TeSys TeSys GV7 motor circuit breaker, TeSys TeSys GV5 motor circuit breaker
- Accessory / separate part category : Control accessory
- Rotary handle mounting location : Front
- Rotary handle mounting style : Extended
- handle colour : Black
- Handle front plate colour : Black
- Back/door distance : 7.28…23.62 in (185…600 mm)
- Rotary handle padlocking : 1 to 3 padlocks 0.20…0.31 in (5…8 mm), Padlock in OFF position
- Net Weight : 1.71 lb(US) (0.775 kg)
- IP Degree of Protection : IP55
- Category : US10I1122366
- Discount Schedule : 0I11
- GTIN : 3389110567328
- Returnability : Yes
- Country of origin : FR
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 3.90 in (9.900 cm)
- Package 1 Width : 4.17 in (10.600 cm)
- Package 1 Length : 19.37 in (49.200 cm)
- Package 1 Weight : 25.04 oz (710.000 g)
- Unit Type of Package 2 : S04
- Number of Units in Package 2 : 6
- Package 2 Height : 11.81 in (30.000 cm)
- Package 2 Width : 15.75 in (40.000 cm)
- Package 2 Length : 23.62 in (60.000 cm)
- Package 2 Weight : 12.15 lb(US) (5.512 kg)
- Unit Type of Package 3 : P06
- Number of Units in Package 3 : 12
- Package 3 Height : 17.72 in (45.000 cm)
- Package 3 Width : 31.50 in (80.000 cm)
- Package 3 Length : 23.62 in (60.000 cm)
- Package 3 Weight : 41.89 lb(US) (19.000 kg)
- Warranty : 18 months
