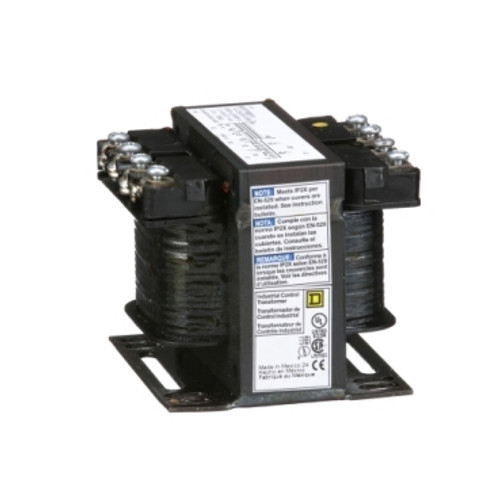

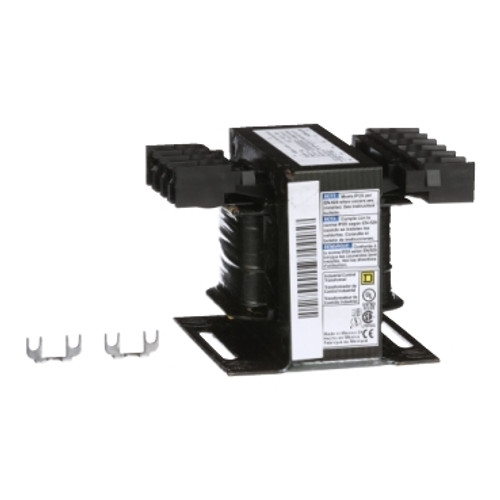

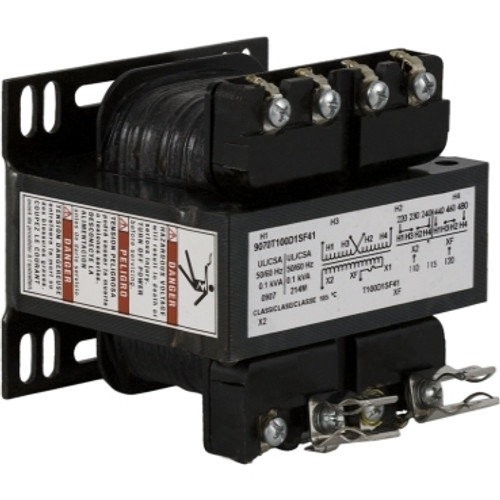

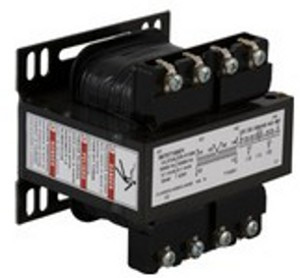

Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. This industrial control transformer has a power rating of 100VA and is 1 phase. This transformer has a 240V x 480V primary voltage and 120V secondary voltage. This transformer complies to UL, CSA, CE standards. There is an 18 month warranty on this product.
- Product Type : Industrial Control Transformer
- Type : T
- Number of Phases : 1 phase
- Power Rating : 100 VA UL, 100 VA CSA, 100 VA NOM, 100 VA CE
- Primary to Secondary Voltage : 240 x 480 V 120 V, 230 x 460 V 115 V, 220 x 440 V 110 V
- Temperature Rise : 55 °C
- Electrical Connection : Screw clamp terminals
- Height : 2.89 in (73.41 mm)
- Width : 3.38 in (85.85 mm)
- Depth : 3.34 in (84.84 mm)
- Material : Copper: winding
- Fingersafe Cover Compatibility : FSC1
- Certifications : UL listed file E61239, CSA file LR37055 guide 184-N-90
- Enclosure Type : Not rated (open device)
- Insulation Temperature : 221 °F (105 °C)
- Category : US10CP816200
- Discount Schedule : 0CP8
- GTIN : 785901904649
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 5.50 in (13.97 cm)
- Package 1 Width : 6.20 in (15.748 cm)
- Package 1 Length : 7.20 in (18.288 cm)
- Package 1 Weight : 4.24 lb(US) (1.923 kg)
- Unit Type of Package 2 : PAL
- Number of Units in Package 2 : 450
- Package 2 Height : 40.00 in (101.6 cm)
- Package 2 Width : 40.00 in (101.6 cm)
- Package 2 Length : 48.00 in (121.92 cm)
- Package 2 Weight : 1723.24 lb(US) (781.65 kg)
- Warranty : 10 Years
