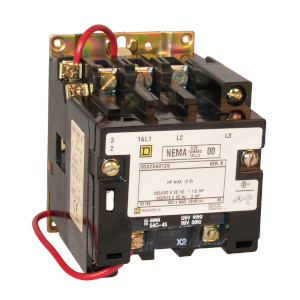

Type S Non-Reversing Contactor|Control Circuit Voltage : 110 V AC 50 Hz, 120 V AC 60 Hz |Line Rated Current : 18 A |Number of Poles : 2P |Phase : 1 phase |System Voltage : 600 V AC |Horsepower Rating : 1 HP 115 V AC, 2 HP 230 V AC
- [Uc] control circuit voltage : 110 V AC 50 Hz~~
- [Uc] control circuit voltage : 120 V AC 60 Hz
- [Ue] rated operational voltage : 600 V AC
- auxiliary contact composition : Uden
- Brand : Square D
- By Schneider : Yes
- contactor application : Non-reversing
- control circuit : Separate control circuit
- Control Type : No control units
- Depth : 4.22 in (107.19 mm)
- Electrical Connection : Screw clamp terminals
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 18A contactor
- Global Keywords : 2 pole contactor
- Global Keywords : Contactors
- Global Keywords : Low voltage
- Global Keywords : NEMA contactor
- Global Keywords : NEMA contactor size 0
- Global Keywords : Non reversing contactor
- Global Keywords : Type S contactor
- Height : 4.34 in (110.24 mm)
- Line Rated Current : 18 A
- Local Signalling : No indicator
- Manufacturer : Schneider Electric
- NEMA degree of protection : Not rated (open device)
- NEMA size : 0
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Phase : 1 phase
- Product Certifications : CSA
- Product Certifications : UL listed file E78351 CCN NLDX
- Product Compatibility : Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC
- Product Compatibility : Fuse J 60 A maximum, SCCR: 100 kA at 600 V AC
- Product Compatibility : Fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC
- Product Compatibility : Fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC
- Product Compatibility : Fuse T 60 A maximum, SCCR: 100 kA at 600 V AC
- Product Or Component Type : Contactor
- Provided Equipment : Fuse not supplied
- Rated Power In Hp : 1 HP 115 V AC
- Rated Power In Hp : 2 HP 230 V AC
- Sustainable packaging : Yes
- Take-back : No
- Type Of Network : 2P
- UNSPSC Classification v19 : 39121529
- UNSPSC Classification v23 : 39121529
- Warranty : 18 months
- Width : 3.22 in (81.79 mm)
