VEB-5324ESGH

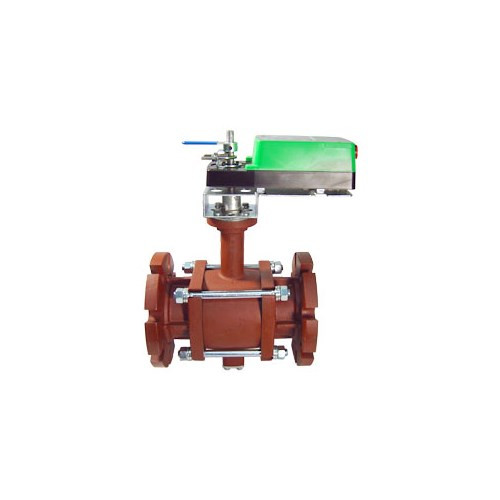

Valve: 6" 2W Flanged, 577 CV, Floating, Failsafe :- KMC VEB-53 series control ball valves are two-way flanged valves, designed for control of hot or chilled water. These valves range in size from 4 to 6 inches with equal-percentage flow characteristics. Leak-proof, blow-out-proof stems, and stainless steel ball and stem make these valves ideal for many applications. These valves use KMC MEP-75xx ControlSet actuators with proportional or tri-state inputs. Proportional models accept a 0–10 VDC, 2–10 VDC, or 4–20 mA control signal input from a thermostat, controller, or building automation system. A user-initiated, automapping feature provides better equipment control by reassigning the input signal range over the desired reduced rotation range (from 45 to 95?). Plus, they feature a feedback voltage output that is proportional to the actuator position. Tri-state models are designed for use with floating thermostats, controllers, or building automation systems. An optional, long-life, capacitor-driven fail-safe feature allows simple switch-selectable fail direction in either direction upon power loss. Optional auxiliary switches are available for remote position indication or controller and equipment interface. A gear disengagement button allows positioning of the valve stem/plug without energizing the actuator. See also VEB-56 series three-way valves.
