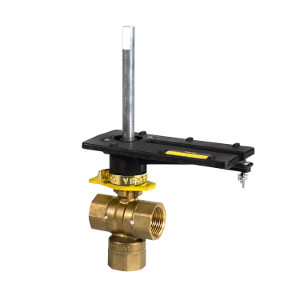

BV 1.5IN 3W NPT BR 4CV LK
- Body Size : 40 mm (1-1/2 in)
- By Schneider : Yes
- Configuration : 3-Way Mixing/Diverting
- Connection Type : NPT
- Flow Characteristic : Equal percentage
- Flow Coefficient : 3.46 kvs, 4.00 cv
- Material Ball : Chrome plated brass, Nickel
- Material Body : Forged brass
- Material Characterizing Insert : Glass-filled Noryl
- Material Mounting Plate : Glass-filled polymer
- Material Stem : Stainless steel
- Material Stem Seal : EPDM O-Rings
- Material Trim : Brass
- Media Compatibility : Glycol 25%, Glycol 30%, Glycol 50%, Water
- Pipe Size : 1-1/2 in
- Pressure Allowable Static : 360 psi
- Pressure Class : 360 ANSI
- Pressure Fluid Max Delta P Normal Life : 276 kPa, 40 psi
- Product Range : VB-2xxx
- Product Series : VB-2300
- Seat Leakage Port A : ANSI IV (0.01%)
- Stem Movement : Rotary
- Temperature Range Fluid : -7 to 121 C (20 to 250 F)
- Type : Ball
