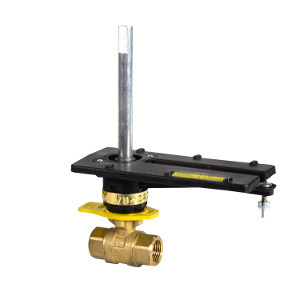

Valve Body (VB-2253-500-9-03):Body Size: 1/2 inConfiguration: 2-WayType: BallConnection: NPTMaterial Trim: Stainless SteelFlow Coefficient: 1.3 cvControl Media: Glycol 25%, Glycol 30%, Glycol 50%, WaterProduct Series: VB-2200Product Alert: Not for use with steam. Comes with Linkage
- Body Size : 15 mm (1/2 in)
- Brand : Schneider Electric
- By Schneider : Yes
- Configuration : 2-Way
- Connection Type : NPT
- End of service date : 01/25/2021
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Not connectable
- Flow Characteristic : Equal Percentage
- Flow Coefficient : 1.12 kvs ; 1.29 cv
- Manufacturer : Schneider Electric
- Material Ball : Stainless Steel
- Material Body : Forged brass
- Material Characterizing Insert : Glass-Filled Noryl
- Material Mounting Plate : Glass-Filled Polymer
- Material Stem : Stainless Steel
- Material Stem Seal : EPDM O-Rings
- Material Trim : Stainless Steel
- Media Compatibility : Glycol 25 % ; Glycol 30 % ; Glycol 50 % ; Water
- Pipe Size : 1/2 in
- Pressure Allowable Static : 360 psi
- Pressure Class : ANSI class 360
- Pressure Fluid Max Delta P Normal Life : 130 psi (896.32 kPa)
- Product Alert : Not for use with steam. Comes with Linkage
- Product Or Component Type : Valve
- Rangeability : 52:1
- Seat Leakage : Port A: Class IV (0.01 %)
- Stem Movement : Rotary
- Temperature Range Fluid : 19…250 °F (-7…121 °C)
- Valve Product Range : VB-2xxx
- Valve Product Series : VB-2200
- Valve Type : Ball
