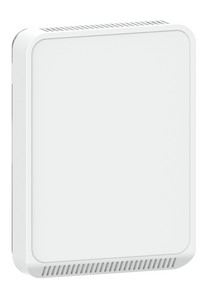

The Veris CW2 Protocol Series of air quality sensors for rooms is a flexible multi-sensor platform for use with BAS controllers designed to accept BACnet MSTP or Modbus outputs. CW2 Protocol Series sensors are available with three user interface options: touchscreen, LCD with three buttons and blank. CO2 and temperature sensors are included with all CW2 Protocol Series air quality sensors. Models with VOC sensors and relative humidity sensors are also available.
- [Us] rated supply voltage : 20...30 V DC~~
- [Us] rated supply voltage : 24 V AC
- Application : Fan speed controller
- Application : HVAC
- Application : Temperature control
- Brand : Veris Industries
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 93
- Color : White
- Communication Port Protocol : BACnet
- Communication Port Protocol : Modbus
- Connections - Terminals : Screw terminal - 2 AWG 24...AWG 18)
- Depth : 0.9 in (24 mm)
- Device Presentation : Complete product
- Display Type : Without Display
- Final Result for Connectable : Connectable ready
- Final Result for Flywheel performance tracking : Connectable products
- Function Available : With CO2 sensor
- Function Available : With temperature sensor
- Function Available : With VOC (volatile organic compounds) sensor
- Global warming ; Total life cycle? : 93 kg CO2 eq.
- Height : 3.3 in (85 mm)
- Location : Living Space
- Material : ABS (acrylonitrile butadiene-styrene)
- Mounting Support : Wall Mount
- Network Frequency : 50 Hz
- Network Frequency : 60 Hz
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Certifications : CE conforming to EN 61000-6-2
- Product Certifications : CE conforming to EN 61000-6-3
- Product Certifications : CE conforming to EN 61326-1
- Product Certifications : CULus
- Product Certifications : EAC
- Product Certifications : ICES-003
- Product Certifications : RCM
- Product Name : SpaceLogic Room Unit
- Product Or Component Type : Sensor
- Product Specific Application : Indoor air quality control
- Range : SpaceLogic
- Range Compatibility : EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
- Repeat Accuracy : +/- 20 ppm
- SCIP Number : F003888f-9e21-4f47-b6e8-5439967a74a2
- Selection Tools : HVAC Sensors
- Sensor Type : NDIR (non-dispersive infrared)
- Sensor Type : transmitter
- Sensor Type : VOC transmitter
- Standards : FCC Part 15 class B
- Standards : UL 916
- Surface Finish : Matte
- Take-back : No
- Temperature Ambient Operating Range : 32…122 °F (0…50 °C)
- Temperature Setting Range : 32…122 °F (0…50 °C)
- Temperature Setting Range : 50…95 °F (10…35 °C)
- Type Of Measurement : Carbon Dioxide (CO2)
- Type Of Measurement : Temperature
- Type Of Measurement : Volatile Organic Compounds (VOC)
- Width : 4.5 in (115 mm)
