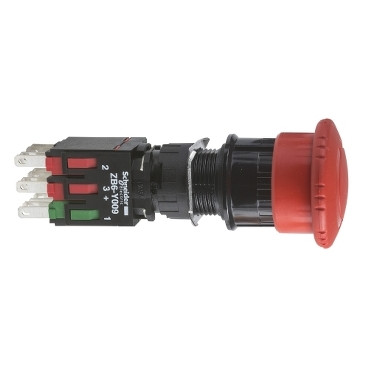

This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into standard 16mm diameter cut-outs and connected with simple faston connectors It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 30mm mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments High performance International standards & certifications ( Marine certification, IP66 IP69 IP69K)
- Range of Product : Harmony XB6
- Product or Component Type : Complete emergency stop push-button
- Device short name : XB6
- bezel material : Plastic
- Mounting diameter : 0.63 in (16 mm)
- Sale per indivisible quantity : 1
- Shape of signaling unit head : Round
- Type of operator : trigger action and mechanical latching
- Reset : Turn to release
- Operator profile : Red mushroom Ø 30 mm, unmarked
- Contacts type and composition : 1 NC
- contact operation : Slow-break
- Connections - terminals : Faston connectors 2.8 x 0.5 mm
- Height : 1.18 in (30 mm)
- Width : 1.18 in (30 mm)
- Depth : 3.03 in (77 mm)
- Terminals description ISO n°1 : (21-22)NC, (13-14)NO
- Net Weight : 0.09 lb(US) (0.041 kg)
- Operating position : Any position
- Type of Keylock : Key 200
- contacts usage : Standard
- Positive opening : With IEC 60947-5-1 appendix K
- Operating force : 3.5 N NO changing electrical state, 4.5 N NC changing electrical state
- Mechanical durability : 100000 cycles
- Contacts material : Silver alloy (Ag/Ni)
- Short-circuit protection : 6 A cartridge fuse gG
- [Ui] rated insulation voltage : 250 V 3)IEC 60947-1
- [Uimp] rated impulse withstand voltage : 4 kV IEC 60947-1
- Electrical reliability : ? < 10exp(-8) 5 V, 1 mA with confidence level of 90 % IEC 60947-5-4
- Protective treatment : TC
- Ambient Air Temperature for Storage : -40…158 °F (-40…70 °C)
- Ambient Air Temperature for Operation : -13…158 °F (-25…70 °C)
- Electrical shock protection class : Class II IEC 61140
- IP degree of protection : IP65 IEC 60529
- Product Certifications : CCC, GOST, CSA, UL
- Vibration resistance : +/- 3 mm 2…500 Hz)IEC 60068-2-6, 5 gn 2…500 Hz)IEC 60068-2-6
- Category : US10CS222459
- Discount Schedule : 0CS2
- GTIN : 3389119018661
- Returnability : Yes
- Country of origin : ES
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.44 in (6.2 cm)
- Package 1 Width : 2.20 in (5.6 cm)
- Package 1 Length : 1.81 in (4.6 cm)
- Package 1 Weight : 1.69 oz (48.0 g)
- Warranty : 18 months
