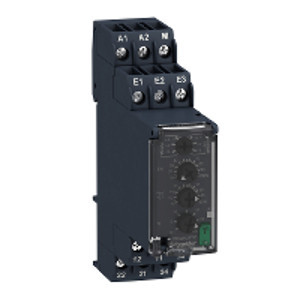

RM22JA31MR

[Uc] control circuit voltage :

24...240 V~~

[Us] rated supply voltage :

24...240 V AC/DC 50/60 Hz, non self-powered

Ambient Air Temperature For Operation :

-4…140 °F (-20…60 °C) 50 Hz

Ambient Air Temperature For Operation :

-4…122 °F (-20…50 °C) 60 Hz

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

44

Circular Eligibility :

Repack list

Connections - Terminals :

Screw connectors

Connections - Terminals :

Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end

Connections - Terminals :

Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end

Connections - Terminals :

Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end

Connections - Terminals :

Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end

Contacts Material :

Cadmium free

Contacts Type And Composition :

2 C/O

control circuit voltage limits :

- 15 % + 10 % Un

dielectric test voltage :

2.5 kV AC 50 Hz, 1 min IEC 60255-27

Electrical Durability :

100000 cycles

Electromagnetic Compatibility :

Conducted and radiated emissions class B conforming to CISPR 22

Electromagnetic Compatibility :

Conducted and radiated emissions class B group 1 conforming to CISPR 11

Electromagnetic Compatibility :

Electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4

Electromagnetic Compatibility :

Electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4

Electromagnetic Compatibility :

Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2

Electromagnetic Compatibility :

Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2

Electromagnetic Compatibility :

Emission standard for industrial environments conforming to IEC 61000-6-4

Electromagnetic Compatibility :

Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3

Electromagnetic Compatibility :

Immunity for industrial environments conforming to IEC 61000-6-2

Electromagnetic Compatibility :

Immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1

Electromagnetic Compatibility :

Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3

Electromagnetic Compatibility :

Surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5

Electromagnetic Compatibility :

Surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5

Final Result for Flywheel performance tracking :

Non Flywheel

functionality :

Overcurrent or undercurrent detection

Global Keywords :

2 C/O Output Contacts

Global Keywords :

Control

Global Keywords :

Current Control Relay

Global Keywords :

DIN Rail

Global Keywords :

Double Pole Double Throw

Global Keywords :

DPDT

Global Keywords :

Harmony

Global Keywords :

Schneider electric

Global warming ; Total life cycle? :

44 kg CO2 eq.

housing material :

Self-extinguishing plastic

Hysteresis :

3 % fixed full scale for window mode

Hysteresis :

5…50 % adjustable threshold setting

immunity to microbreaks :

50 ms

insulation :

Between supply and measurement

insulation resistance :

> 100 MOhm 500 V DC IEC 60255-27

internal input resistance :

0.1 Ohm

internal input resistance :

0.5 Ohm

internal input resistance :

2.5 Ohm

IP Degree of Protection :

IP20 IEC 60529 terminals)

IP Degree of Protection :

IP40 IEC 60529 housing)

IP Degree of Protection :

IP50 IEC 60529 front panel)

Line Rated Current :

8 A

Local Signalling :

LED (green) for power ON

Local Signalling :

LED (yellow) for relay ON

Manufacturer :

Schneider Electric

maximum measuring cycle :

100 ms measurement cycle as true rms value

Maximum Power Consumption In Va :

3.5 VA

Maximum Power Consumption In W :

1.5 W DC

Maximum Switching Current :

8 A AC

maximum switching voltage :

250 V AC

measurement error :

0.05 %/°C with temperature variation

Measurement Range :

4 mA...1 A current AC/DC 50/60 Hz

Mechanical Durability :

10000000 cycles

minimum switching current :

10 mA 5 V DC

Mounting Support :

35 mm DIN rail conforming to IEC 60715

Net Weight :

0.24 lb(US) (0.11 kg)

nominal output current :

8 A

Number of Units in Package 2 :

40

Number of Units in Package 3 :

640

output contacts :

2 C/O

Override :

With test button

Overvoltage Category :

III conforming to IEC 60664-1

Overvoltage Category :

III conforming to UL 508

Package 2 GTIN :

43606480792296

Package 2 Height :

5.91 in (15.0 cm)

Package 2 Length :

15.75 in (40.0 cm)

Package 2 Weight :

11.678 lb(US) (5.297 kg)

Package 2 width :

11.81 in (30.0 cm)

Package 3 Height :

19.69 in (50.0 cm)

Package 3 Length :

23.62 in (60.0 cm)

Package 3 Weight :

204.10 lb(US) (92.58 kg)

Package 3 width :

31.50 in (80.0 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

Pollution Degree :

3 IEC 60664-1

Pollution Degree :

3 UL 508

Product Certifications :

CCC

Product Certifications :

CE

Product Certifications :

CSA

Product Certifications :

EAC

Product Certifications :

GL

Product Certifications :

RCM

Product Certifications :

UL

Product Or Component Type :

Current control relay

Relative Humidity :

93…97 % 77…131 °F (25…55 °C) IEC 60068-2-30

relay monitored parameters :

Overcurrent or undercurrent detection

relay monitored parameters :

Overcurrent or undercurrent in window mode

relay name :

RM22JA

Relay Type :

Current control relay

Repeat Accuracy :

+/- 0.2 % time delay

Repeat Accuracy :

+/- 0.5 % input and measurement circuit

reset time :

1500 ms at maximum voltage

resistance across terminals :

0.1 Ohm E3-M terminals

resistance across terminals :

0.5 Ohm E2-M terminals

resistance across terminals :

2.5 Ohm E1-M terminals

run-up delay at power-up :

0.3 s

safety reliability data :

B10d = 270000

safety reliability data :

MTTFd = 296.8 years

SCIP Number :

5e3fdf99-611b-4d07-ad17-6eba84ab488b

setting accuracy of the switching threshold :

+/- 10 % of the full scale

setting accuracy of time delay :

10 P

shock resistance :

15 gn 11 ms) not in operation IEC 60068-2-27

shock resistance :

5 gn 11 ms) in operation IEC 60068-2-27

Standards :

IEC 60255-1

supply voltage limits :

20.4…264 V AC/DC

Sustainable packaging :

Yes

switching capacity in VA :

2000 VA

Take-back :

No

Temperature Shipping and Storage Range :

-40…158 °F (-40…70 °C)

threshold setting :

10...100 %

Tightening Torque :

5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1

time delay type :

Adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault

Unit Type of Package 2 :

S02

Unit Type of Package 3 :

P06

UNSPSC Classification v19 :

39122319

UNSPSC Classification v23 :

39122319

utilisation category :

AC-1 IEC 60947-4-1

utilisation category :

AC-15 IEC 60947-5-1

utilisation category :

DC-1 IEC 60947-4-1

utilisation category :

DC-13 IEC 60947-5-1

vibration resistance :

0.035 mm 58.1…150 Hz) in operation IEC 60068-2-6

vibration resistance :

0.075 mm 10…58.1 Hz) not in operation IEC 60068-2-6

vibration resistance :

0.5 gn 58.1…150 Hz) in operation IEC 60068-2-6

vibration resistance :

1 gn 10…58.1 Hz) not in operation IEC 60068-2-6

Volume of Package 2 :

18000.0 cm3

Volume of Package 3 :

240000.0 cm3

Width :

0.9 in (22.5 mm)
