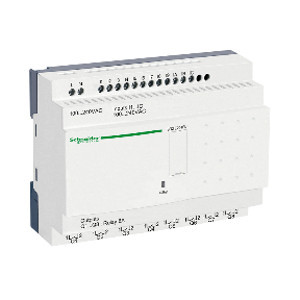

SR2E201FU

[Uimp] rated impulse withstand voltage :

4 kV EN/IEC 60947-1 and EN/IEC 60664-1~~

[Us] rated supply voltage :

100...240 V AC

Ambient Air Temperature For Operation :

-4…104 °F (-20…40 °C) in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2

Ambient Air Temperature For Operation :

-4…131 °F (-20…55 °C) IEC 60068-2-1 and IEC 60068-2-2

Analogue Input Number :

0

Backup Time :

10 years 77 °F (25 °C)

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

321

checks :

Program memory on each power up

clock :

With

Clock Drift :

12 min/year 32…131 °F (0…55 °C)

Clock Drift :

6 s/month 77 °F (25 °C)

Connections - Terminals :

Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid

Connections - Terminals :

Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid

Connections - Terminals :

Screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end

Connections - Terminals :

Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid

Connections - Terminals :

Screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end

Contacts Type And Composition :

NO relay output

Current State 1 Guaranteed :

>= 0.17 mA discrete input)

cycle time :

6…90 ms

Discrete Input Current :

0.6 mA

discrete input frequency :

47...53 Hz

discrete input frequency :

57...63 Hz

Discrete Input Number :

12

Discrete Input Voltage :

100...240 V AC

disturbance radiated/conducted :

Class B EN 55022-11 group 1

Electrical Durability :

AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1

Electrical Durability :

AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1

Electrical Durability :

DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1

Electrical Durability :

DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1

Environmental Characteristic :

EMC directive conforming to IEC 61000-6-2

Environmental Characteristic :

EMC directive conforming to IEC 61000-6-3

Environmental Characteristic :

EMC directive conforming to IEC 61000-6-4

Environmental Characteristic :

EMC directive conforming to IEC 61131-2 zone B

Environmental Characteristic :

Low voltage directive conforming to IEC 61131-2

Final Result for Flywheel performance tracking :

Edge control

Global Keywords :

20 I/Os contact outputs

Global Keywords :

Clock

Global Keywords :

Compact form factor

Global Keywords :

Compact smart relay

Global Keywords :

Control relay

Global Keywords :

DIN Rail

Global Keywords :

Discrete inputs

Global Keywords :

FBD (Function block giagram)

Global Keywords :

LADDER programming languages

Global Keywords :

Programmable controller

Global Keywords :

Relay outputs

Global Keywords :

Schneider electric

Global warming ; Total life cycle? :

321 kg CO2 eq.

immunity to microbreaks :

10 ms

Input Impedance :

350 kOhm discrete input

IP Degree of Protection :

IP20 IEC 60529 terminal block)

IP Degree of Protection :

IP40 IEC 60529 front panel)

isolation voltage :

1780 V

local display :

Without

Manufacturer :

Schneider Electric

maximum altitude transport :

10000 ft (3048 m)

Maximum Supply Current :

100 mA 100 V without extension)

Maximum Supply Current :

50 mA 240 V without extension)

Mechanical Durability :

10000000 cycles relay output

Net Weight :

0.77 lb(US) (0.35 kg)

Number Of Outputs :

8 relay

Number of Units in Package 2 :

20

number or control scheme lines :

0…240 ladder

number or control scheme lines :

0…500 FBD

Operating Altitude :

6561.68 ft (2000 m)

operating rate in Hz :

0.1 Hz at Ie)relay output

operating rate in Hz :

10 Hz no load)relay output

output thermal current :

8 A for all 8 outputs relay output

output voltage limits :

24...250 V AC

output voltage limits :

5...30 V DC relay output)

Overvoltage Category :

III conforming to IEC 60664-1

Package 2 GTIN :

13389110549833

Package 2 Height :

11.81 in (30.000 cm)

Package 2 Length :

15.75 in (40.000 cm)

Package 2 Weight :

15.911 lb(US) (7.217 kg)

Package 2 width :

11.81 in (30.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

Pollution Degree :

2 IEC 61131-2

Power Consumption In Va :

11 VA without extension

Product Certifications :

CSA

Product Certifications :

C-tick

Product Certifications :

GL

Product Certifications :

GOST

Product Certifications :

UL

Product Or Component Type :

Compact smart relay

Protection Type :

Against inversion of terminals (control instructions not executed)

PVC free :

Yes

Relative Humidity :

95 % without condensation or dripping water

Response Time :

10 ms from state 0 to state 1)relay output

Response Time :

5 ms from state 1 to state 0)relay output

Response Time :

50 ms ladder from state 0 to state 1)discrete input

Response Time :

50 ms ladder from state 1 to state 0)discrete input

Response Time :

50...255 ms FBD from state 0 to state 1)discrete input

Response Time :

50...255 ms FBD from state 1 to state 0)discrete input

SCIP Number :

Eee2fc35-1620-4b70-b1d5-206e9240044e

Standards :

IEC 60068-2-27 Ea

Standards :

IEC 60068-2-6 Fc

Standards :

IEC 61000-4-11

Standards :

IEC 61000-4-12

Standards :

IEC 61000-4-2 level 3

Standards :

IEC 61000-4-3

Standards :

IEC 61000-4-4 level 3

Standards :

IEC 61000-4-5

Standards :

IEC 61000-4-6 level 3

Supply Frequency :

50/60 Hz

supply voltage limits :

85…264 V

switching capacity in mA :

>= 10 mA 12 V relay output)

Take-back :

No

Temperature Shipping and Storage Range :

-40…158 °F (-40…70 °C)

Tightening Torque :

4.4 lbf.in (0.5 N.m)

Toxic heavy metal free :

Yes

Unit Type of Package 2 :

S03

UNSPSC Classification v19 :

39122331

UNSPSC Classification v23 :

39122331

Voltage State 1 Guaranteed :

>= 79 V discrete input

Volume of Package 2 :

36000.000 cm3

Warranty :

18 months

PDF :

https://iportal2.schneider-electric.com/Contents/docs/SQD-SR2E201FU.PDF
