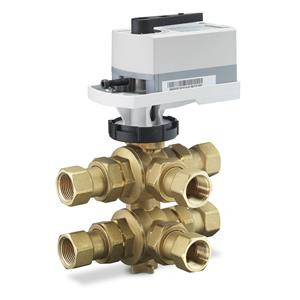

171C-10601-4.7-1.9 - 6W ball valve 3/4", A=4.7Cv, B=1.9Cv, 58psi close-off, NPT Union Internal Thread, 0-10V NSR
Technical Specifications:
- Source A, Cv: 4.7
- Source B, Cv: 1.9
- Valve Type: Six-way
- Valve Body Style: Rotary-Ball
- Port Configuration: 6-Way Changeover
- End Connection: NPT Union Internal Thread
- Connecting thread: 3/4 inch NPT
- Material, valve body: Brass
- Material, inside set: Ball: Chrome-plated brass , Ball Seals: PTFE , Stem: Stainless Steel , Stem Seals: EPDM O-rings
- Medium: Water , Water with anti-freeze
- Leakage rate: 0%
- Permissible operating pressure: 29 psi
- Medium temperature: 35…250 ºF
- Valve Actuator Type: Electronic
- Actuation Style: Rotary
- Supply Voltage: 24 VAC
- Positioning time: 90 s
- Power consumption: 3.3 VA
- Auxiliary Switch: No
- Dimensions (W x H x D): 6.63 x 9.5 x 4.25 in
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
Brand: Siemens
SKU: 171C-10601-4.7-1.9
