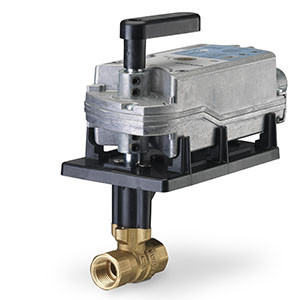

172G-10326 - 2W 1-1/2", 160Cv ball valve assembly, chrome-plat brass ball, brass stem, 0-10V NC SR, full-port valve without flow characterizer insert
- Valve Type : Two-way
- Valve Body Style : Rotary-Ball
- Port Configuration : 2-Way Normally closed
- End Connection : NPT
- Material, valve body : Brass
- Medium : Water , Water with anti-freeze
- Leakage rate : ANSI Class IV
- Leakage rate, class : ANSI Class IV
- Medium temperature : 35…250 ºF
- Valve Actuator Type : Electronic
- Actuation Style : Rotary
- Normally Open/Normally Closed : Normally Closed
- Supply Voltage : 24 VAC/DC
- Auxiliary Switch : No
- Dimensions (W x H x D) : 8.75 x 9.25 x 5.38 in
