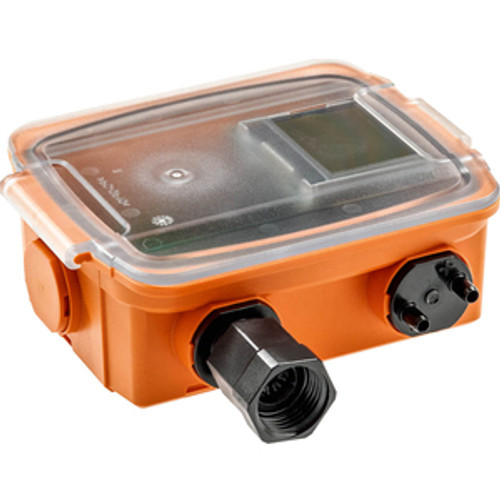

Differential pressure sensor Air, -0.4...10 inch WC [-100...2500 Pa], active, BACnet, 0...5 V, 0...10 V, LCD Parts included: mounting plate, PVC tube 2 m, 2 connection elements (plastic), dowels, screws, additional cable gland, 1/2" NPT conduit adapter
- Voltage AC/DC : AC/DC 24 V
- Electrical Connection : terminals
- Measured Values : Differential pressure ; Volumetric flow
- Output Signal : BACnet ; 0...5 V ; 0...10 V
- Measuring Range Pressure : -100...2500 Pa
- Measuring Range Pressure : -0.4...10 inch WC
- Communication : BACnet MS/TP
- Output Voltage [Range] : 2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
- Output signal active note : Output 0...5/10 V selectable with switch
- Display Type : LCD
