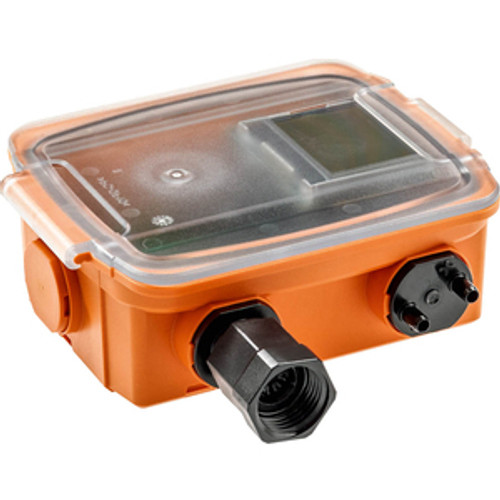

Belimo product 22ADP-56QB technical information.
Technical Specifications:
- Voltage AC/DC: AC/DC\xa024\xa0V
- Electrical Connection: Terminals
- Measured Values: Differential pressure
- Output Signal: BACnet
- Measuring Range Pressure: -150...250 Pa
- Measuring Range Pressure: -0.6...1 inch WC
- Communication: BACnet MS/TP
- Output Voltage [Range]: 2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
- Output signal active note: Output 0...5/10 V selectable with switch
- Display Type: LCD
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
Brand: Belimo
SKU: 22ADP-56QB
