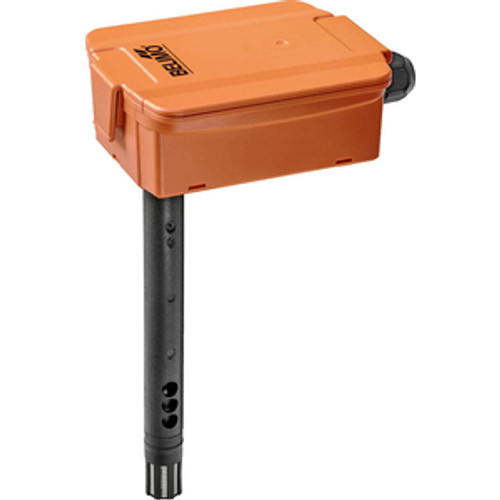

Duct sensor COâ‚‚ / Temperature active, 0...5 V, 0...10 V, Probe length 7" [180 mm], Probe diameter 0.77" [19.5 mm] Parts included: mounting flange
- Voltage AC/DC : AC/DC 24 V
- Electrical Connection : terminals
- Measured Values : CO₂ ; Temperature
- Output Signal : 0...5 V ; 0...10 V
- Measuring Range CO₂ : 0...2000 ppm
- Measuring Range Temperature : 32...122°F [0...50°C]
- Output Voltage [Range] : 2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
- Output signal active note : output 0...5/10 V with jumper adjustable
- Probe Length : 7" [180 mm]
