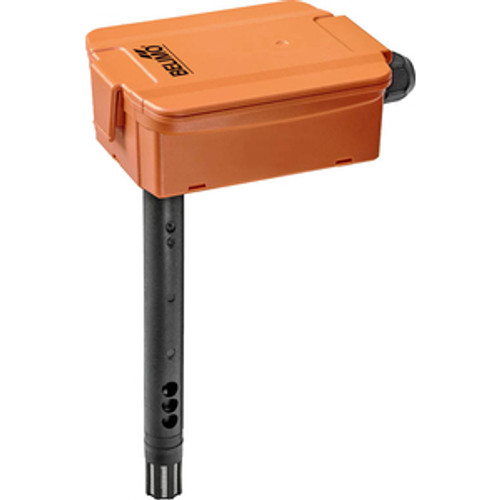

Duct sensor COâ‚‚ / Temperature active, 4...20 mA, 0...5 V, 0...10 V, Probe length 7" [180 mm], Probe diameter 0.77" [19.5 mm] Parts included: mounting flange
- Voltage AC/DC : AC/DC\xa024\xa0V
- Electrical Connection : Terminals
- Measured Values : CO₂ ; Temperature
- Output Signal : 4...20\xa0mA ; 0...5\xa0V ; 0...10\xa0V
- Measuring Range CO₂ : Default setting: 0...2000 ppm ; With A-22G-A05: 0...5000 ppm
- Measuring Range Temperature : 32...122°F [0...50°C]
- Output Current [Range] : 1x 4...20 mA, max. resistance 500 Ω (22DC-13) ; 2x 4...20 mA, max. resistance 500 Ω (22DTC-13)
- Output signal active note : output 0...5/10 V with jumper adjustable
- Probe Length : 7" [180 mm]
