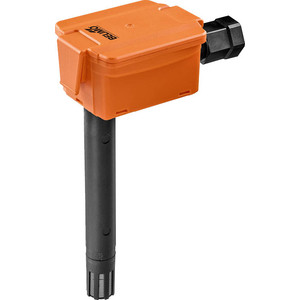

Duct sensor Humidity / Temperature active, 0...5 V, 0...10 V, Pt1000 (passive), Probe length 5.5" [140 mm], Probe diameter 0.77" [19.5 mm] Parts included: mounting flange, 1/2" NPT conduit adapter
- Voltage AC/DC : AC/DC 24 V
- Electrical Connection : terminals
- Measured Values : Temperature ; Humidity
- Output Signal : 0...5 V ; 0...10 V ; Pt1000
- Measuring Range Humidity : 0...100% RH non-condensing
- Measuring Range Temperature : -30...160°F [-35...70°C]
- Output Voltage [Range] : 1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
- Output signal passive temperature : Pt1000
- Output signal active note : output 0...5/10 V with jumper adjustable
- Probe Length : 5.5" [140 mm]
