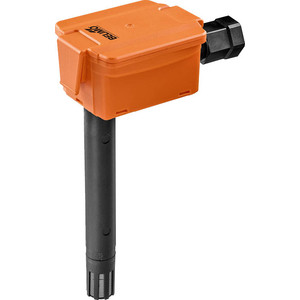

Duct sensor Humidity / Temperature active, 4...20 mA, NTC10k3 (Precon) (passive), Probe length 5.5" [140 mm], Probe diameter 0.77" [19.5 mm] Parts included: mounting flange, 1/2" NPT conduit adapter
- Voltage AC/DC : DC 24 V
- Electrical Connection : terminals
- Measured Values : Temperature ; Humidity
- Output Signal : 4...20 mA ; NTC10k3 (Precon)
- Measuring Range Humidity : 0...100% RH non-condensing
- Measuring Range Temperature : -30...160°F [-35...70°C]
- Output Current [Range] : 1x 4...20 mA, max. resistance 500 Ω
- Output signal passive temperature : NTC10k3 (Precon)
- Probe Length : 5.5" [140 mm]
