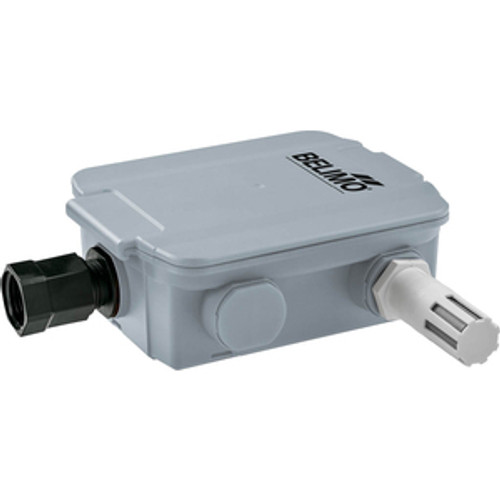

Outdoor sensor Humidity / Temperature active, 0...5 V, 0...10 V, Ni1000 (JCI) (passive) Parts included: mounting plate, rain cover, dowels, screws, 1/2" NPT conduit adapter
- Voltage AC/DC : AC/DC 24 V
- Electrical Connection : terminals
- Measured Values : Temperature ; Humidity
- Output Signal : 0...5 V ; 0...10 V ; Ni1000 (JCI)
- Measuring Range Humidity : 0...100% RH non-condensing
- Measuring Range Temperature : -30...120°F [-35...50°C]
- Output Voltage [Range] : 1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
- Output signal passive temperature : Ni1000 (JCI)
- Output signal active note : output 0...5/10 V with jumper adjustable
