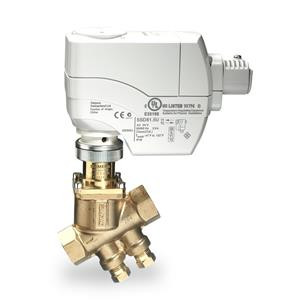

233-04320-1.5 1/2 PICV1.5GPM+0-10 SR NO
Technical Specifications:
- EAN: Not available
- UPC: Not available
- Commodity Code: 8481809020
- LKZ_FDB/ CatalogID: BT_Catalog
- Product Group: QBC8
- Group Code: H5CC
- Country of origin: Denmark
- RoHS Compliance: Since: 08-22-18
- WEEE (2012/19/EU) Take-Back Obligation: No
- Technical specifications:Valve Size: 0.5 in
- Valve Type: Two-way
- Valve Body Style: Stroke-Globe
- End Connection: NPT
- Material, valve body: Brass
- Trim Material: Brass
- Material, inside set: Plug: Brass
- Flow Characteristic: Linear
- Medium: Water
- Pressure Class: ANSI 250
- Leakage rate: ANSI Class IV (0.01%) @ 200 psi
- Rangeability: ≥ 100:1
- Stroke: 1/5 in
- Close-off Pressure: 200 psi
- Actuation Style: Linear
- Normally Open/Normally Closed: Normally Open
- Control Signal: 0...10 Vdc
- Fail Safe: Yes
- Supply Voltage: 24 VAC
- Positioning time: 30 s
- Power consumption: 2 VA
- Warranty: 5 Years
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
Brand: Siemens
SKU: 233-04320-1.5
