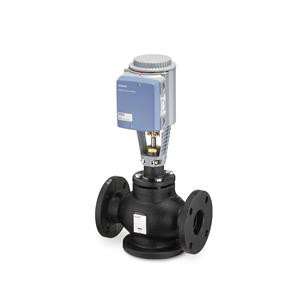

267-06051 - Valve assy Hi Temp 2W NC 3" 100Cv Lin SS Trim Flng Prop El-Hydraul Act NSR
Technical Specifications:
- Valve Body Style: Stroke-Globe
- End Connection: Flanged
- Connecting thread: Direct-coupled universal bonnet
- Material, valve body: Cast iron ASTM A126 Class B
- Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
- Medium: Saturated steam , Water , Water with anti-freeze , Steam
- Rangeability: 100:1
- High temperature: YES
- Port Configuration: 2-Way Normally closed
- Medium temperature: 20…337 ºF
- Stroke: 20 mm, 0.75 "" mm
- Stroke, inch: 0.75
- Stroke, mm: 20 mm
- Valve Actuator Type: Electronic
- Supply Voltage: 24 VAC
- Positioning time: Open:30 s, Close:15 s
- Power consumption: 17 VA
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
Brand: Siemens
SKU: 267-06051
