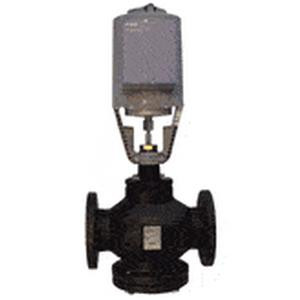

294-06624 - Valve asy Hi Pr Close-off 2W NO 6" 400Cv EqPct SS ANSI 250, Prop El-Hyd Act SR
Technical Specifications:
- Valve Body Style: Stroke-Globe
- End Connection: Flanged
- Connecting thread: Direct-coupled universal bonnet
- Material, valve body: Cast iron ASTM A126 Class B
- Material, inside set: Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Stainless Steel , Seat: Metal-to-metal , Normal Duty Packing: EPDM O-ring
- Medium: Water , Water with anti-freeze
- Leakage rate: Class IV (0.01% of Cv)
- Leakage rate, class: ANSI Leakage Class IV
- Rangeability: >100:1
- High temperature: NO
- Port Configuration: 2-Way Normally open
- Medium temperature: 20…250 ºF
- Ambient temperature, operation: 5 to 130 °F, -15 to 55 °C
- Stroke: 1-1/2 in., 40 mm
- Stroke, inch: 1.5
- Stroke, mm: 40 mm
- Valve Actuator Type: Electronic
- Supply Voltage: 24 VAC
- Positioning time: Power stroke 120 sec, Return stroke 20 sec, Spring return 20 sec
- Power consumption: 28 VA
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
Brand: Siemens
SKU: 294-06624
