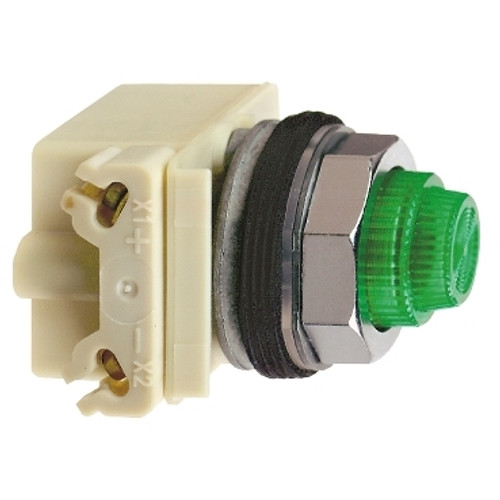

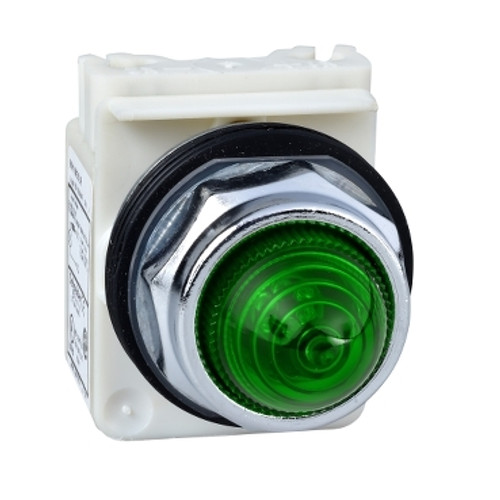

This single component pilot light provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance It works at a rated voltage of 120V. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
- Range of Product : Harmony 9001K
- Product or Component Type : Head for pilot light
- Device short name : K
- bezel material : Metal
- Mounting diameter : 1.18 in (30 mm)
- Cap/operator or lens colour : Without cap
- Bulb base : BA 9s
- Light block supply : Full voltage 120 V
- Shape of screw head : Round
- Light source : Incandescent bulb
- Operating Mode : Normal
- [Us] rated supply voltage : 120 V
- Light block supply : Full voltage or resistor
- Size : 30 mm
- Product Certifications : CE, CSA LR25490 class 3211 03, UL listed file E42259 CCN NKCR
- NEMA degree of protection : NEMA 1/2/3/3R/4/6/12/13
- Category : US10CS121426
- Discount Schedule : 0CS1
- GTIN : 785901008750
- Returnability : Yes
- Country of origin : US
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 1.80 in (4.572 cm)
- Package 1 Width : 2.20 in (5.588 cm)
- Package 1 Length : 3.70 in (9.398 cm)
- Package 1 Weight : 4.80 oz (136.078 g)
- Warranty : 18 months
