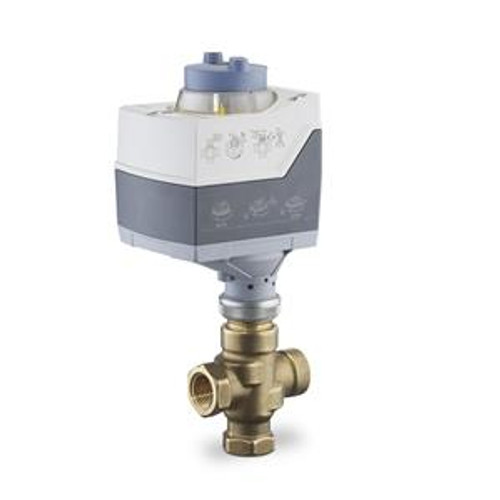

364-02066 - MT Series 3W Valve assy ANSI 250 Mix Linear 1/2" Internal Thread x Internal Thread 1Cv 24V 0-10V/4-20mA NSR
Technical Specifications:
- Valve Type: Three-way
- Valve Body Style: Stroke-Globe
- Port Configuration: 3-Way Mixing
- End Connection: NPT
- Connecting thread: Direct-coupled universal bonnet
- Material, valve body: Brass
- Material, inside set: Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: Ethylene propylene O-ring , Seat: metal-to-metal
- Leakage rate: Class IV (0.01% of Cv)
- Permissible operating pressure: Max. differential pressure for modulating service: 25 psi (173 kPa)
- Medium temperature: 35…250 ºF
- Stroke: 7/32 in
- Valve Actuator Type: Electronic
- Supply Voltage: 24 VAC
- Positioning time: 30 s
- Power consumption: 5.3 VA
Product Literature:
Brand: Siemens
SKU: 364-02066
