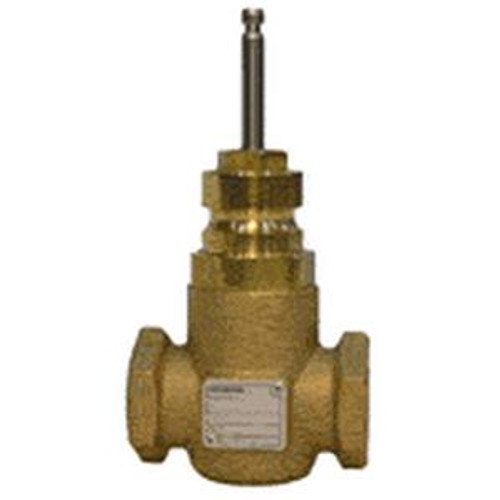

599-03109 - Flowrite 1/2" 2-Way Valve, NO, 1.6 Cv, Equal Percent, SS Trim, Internal Thread x Internal Thread, ANSI 250
Technical Specifications:
- Valve Body Style: Stroke-Globe
- Port Configuration: 2-Way Normally open
- End Connection: Internal Thread x Internal Thread
- Connecting thread: NPT, direct-coupled universal bonnet
- Material, valve body: UNS CA 844 bronze
- Material, inside set: Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
- Medium: Saturated steam , Water , Water with anti-freeze , Steam
- DN: 15
- Leakage rate: Class IV (0.01% of Cv)
- Rangeability: >100:1
- Medium temperature: 20…250 ºF
- Stroke: 3/4 in., 20 mm
- Dimensions (W x H x D): 2.83 x 4.61 x 1.18 in
Product Literature:
Brand: Siemens
SKU: 599-03109
