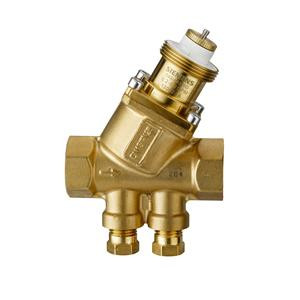

599-04322-6 - 599-04322-6, 3/4 PICV, 6 GPM NO
Technical Specifications:
- Valve Size: 0.75 in
- Valve Body Style: Stroke-Globe
- Port Configuration: 2-Way Normally open
- End Connection: NPT
- Connecting thread: Internal NPT thread
- Material, valve body: Brass
- Trim Material: Brass
- Material, inside set: Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
- Flow Characteristic: Linear
- Medium: Water , Water with anti-freeze
- Max GPM: 8 gpm
- DN: 20
- Min GPM: 1.3 gpm
- Preset GPM: 6 gpm
- Pressure Class: ANSI 250
- Leakage rate: ANSI Class IV
- Leakage rate, class: ANSI Class IV
- Rangeability: = 100:1
- Medium temperature: 34…248 ºF
- Stroke: 5.5 mm
- Close-off Pressure: 200 psi
Product Literature:
Brand: Siemens
SKU: 599-04322-6
