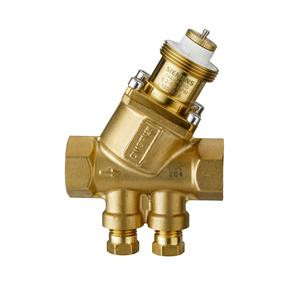

599-04323-13 - 599-04323-13, 1 PICV, 13 GPM NO
- Valve Size : 1 in
- Valve Body Style : Stroke-Globe
- Port Configuration : 2-Way Normally open
- End Connection : NPT
- Connecting thread : Internal NPT thread
- Material, valve body : Brass
- Trim Material : Brass
- Material, inside set : Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
- Flow Characteristic : Linear
- Medium : Water , Water with anti-freeze
- Max GPM : 16 gpm
- DN : 25
- Min GPM : 2.6 gpm
- Preset GPM : 13 gpm
- Pressure Class : ANSI 250
- Leakage rate : ANSI Class IV
- Leakage rate, class : ANSI Class IV
- Rangeability : = 100:1
- Medium temperature : 34…248 ºF
- Stroke : 5.5 mm
- Close-off Pressure : 200 psi
